Power Steering Oil Pump Disassembly/Assembly: Notes

1. The following procedure is for replacement of the O-rings only. Replace the pump component if other repairs are necessary.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

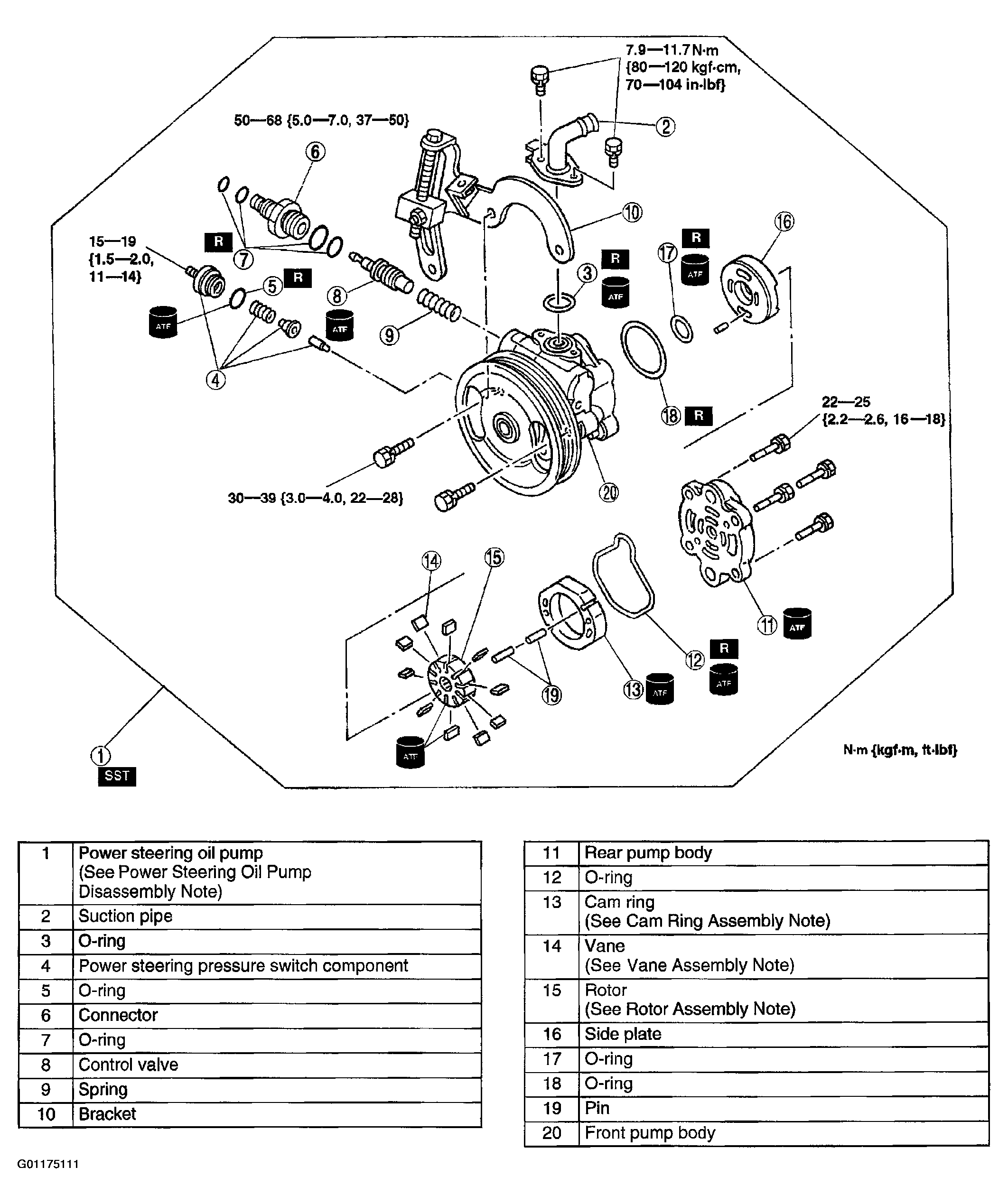

Fig 1: Disassembling & Assembling Power Steering Oil Pump

Courtesy of MAZDA MOTORS CORP.
