Cam Ring Assembly Note

Install the cam ring with the identification mark facing downward.

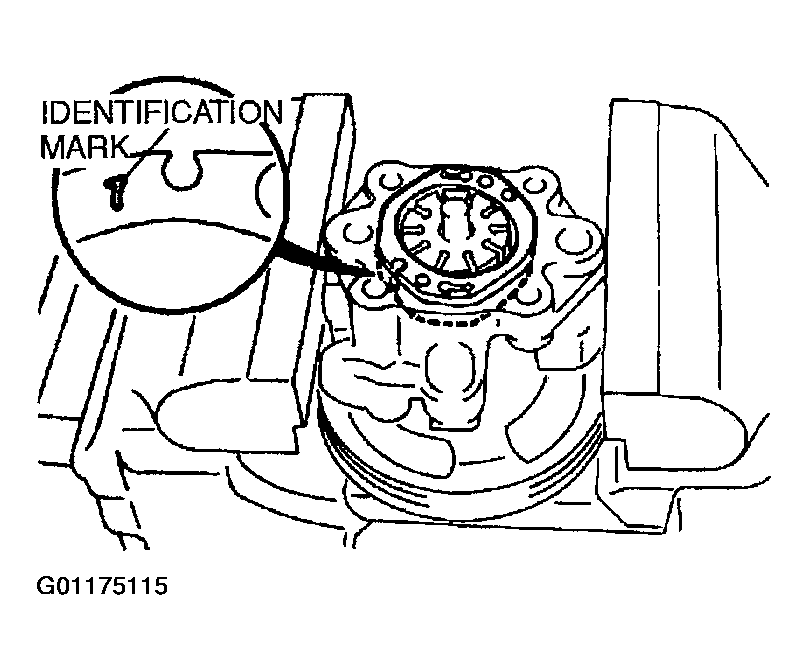

Fig 1: Assembling Cam Ring

G01175115

Courtesy of MAZDA MOTORS CORP.
