Engine Speed Sensing Power Steering Component Location Index

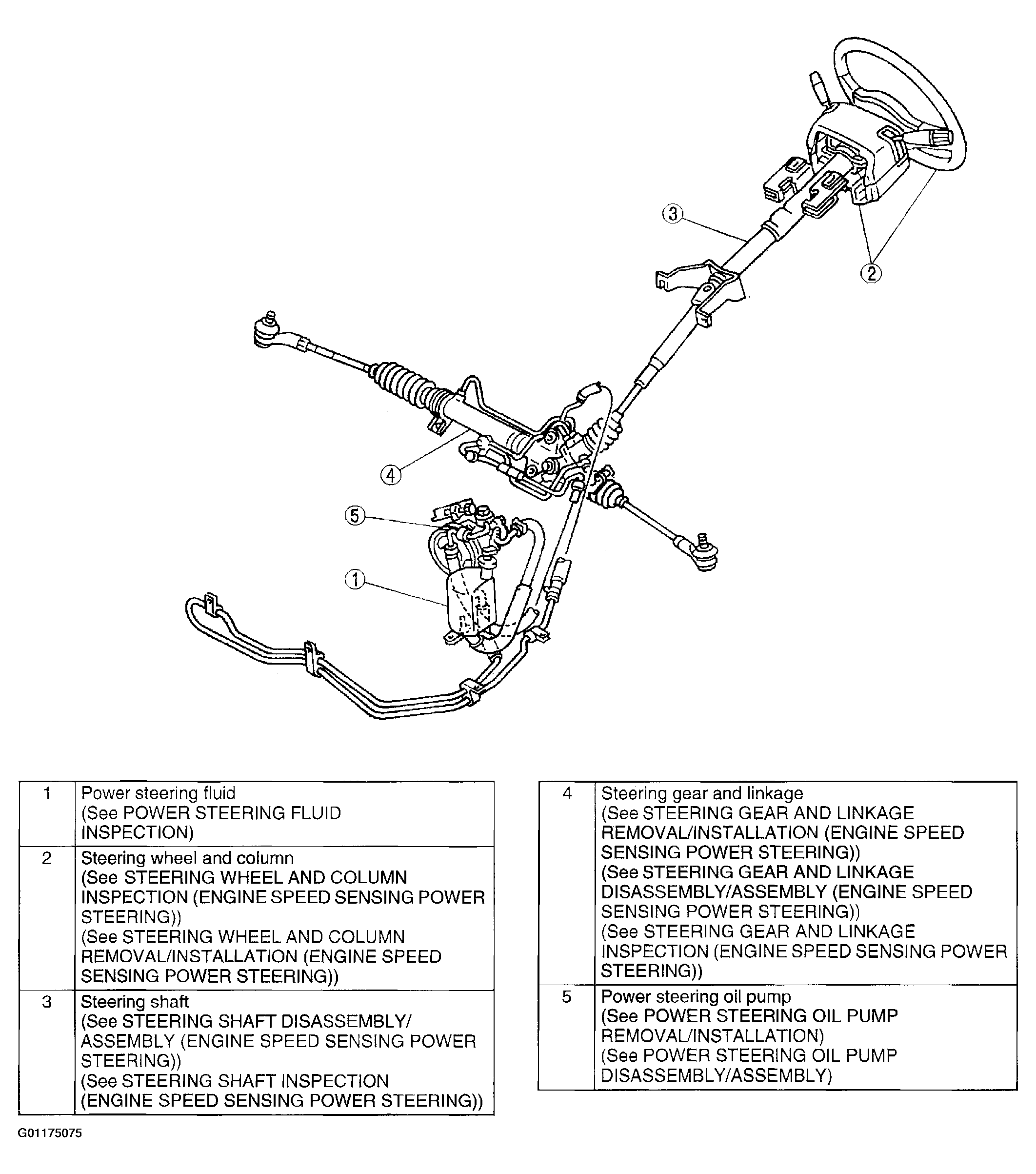

Fig 1: Locating Engine Speed Sensing Power Steering Components

G01175075

Courtesy of MAZDA MOTORS CORP.
