Engine Control System

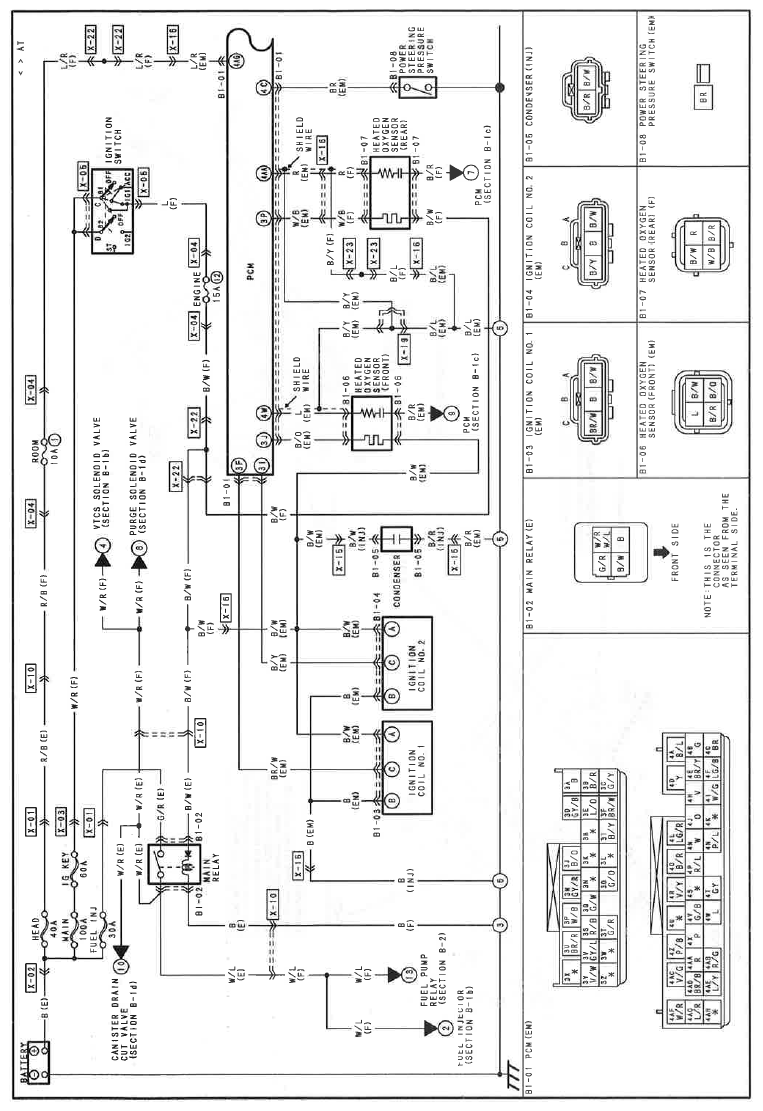

Fig 1: Engine Control System Wiring Diagram (B-1A; 1 Of 2)
G11542907Courtesy of MAZDA MOTORS CORP.

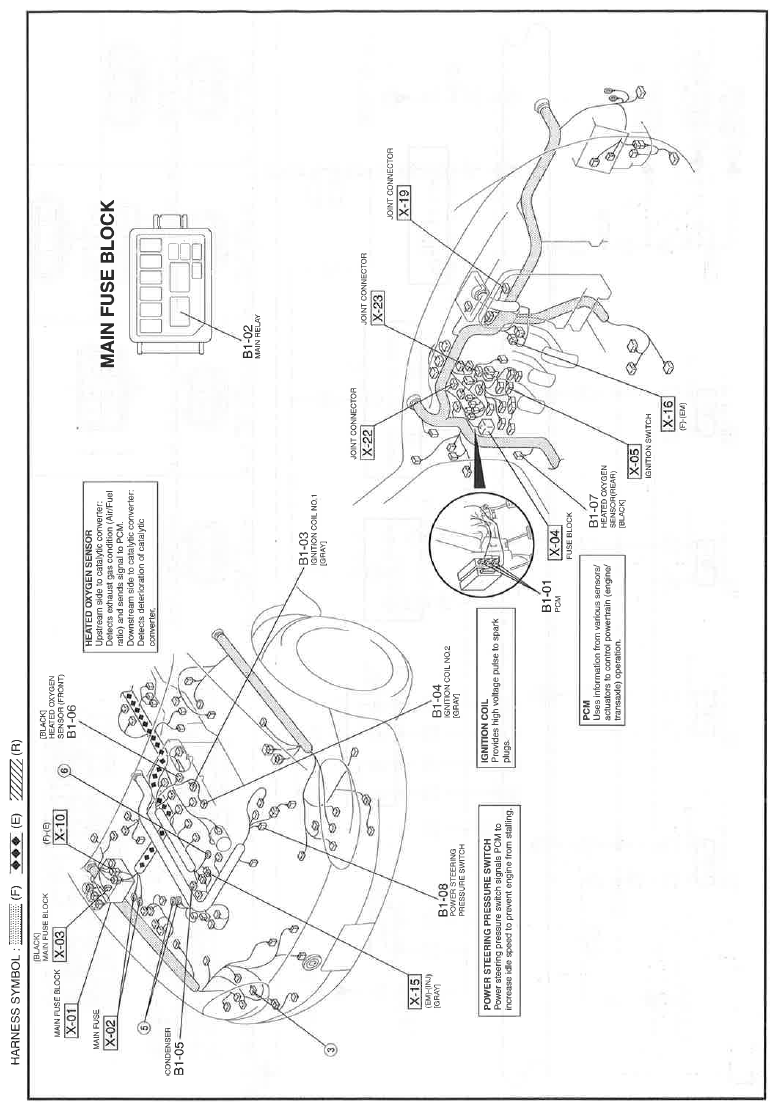

Fig 2: Engine Control System Wiring Diagram (B-1A; 2 Of 2)
G11542908Courtesy of MAZDA MOTORS CORP.

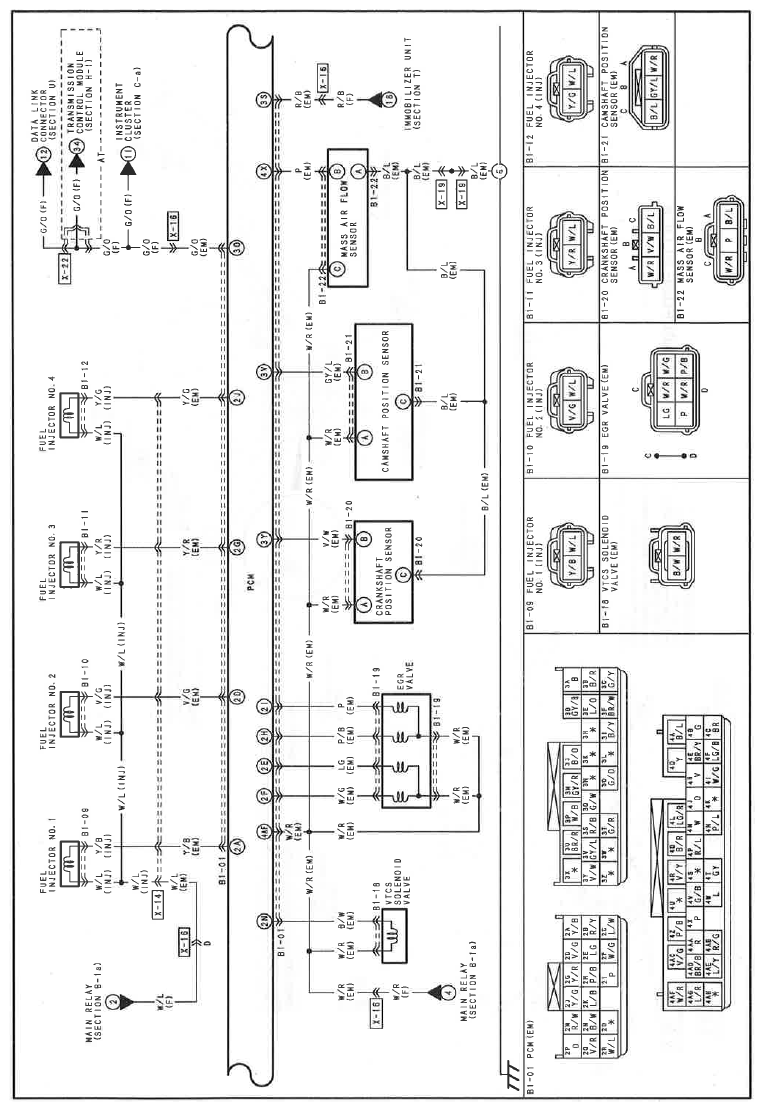

Fig 3: Engine Control System Wiring Diagram (B-1B; 1 Of 2)
G11542909Courtesy of MAZDA MOTORS CORP.

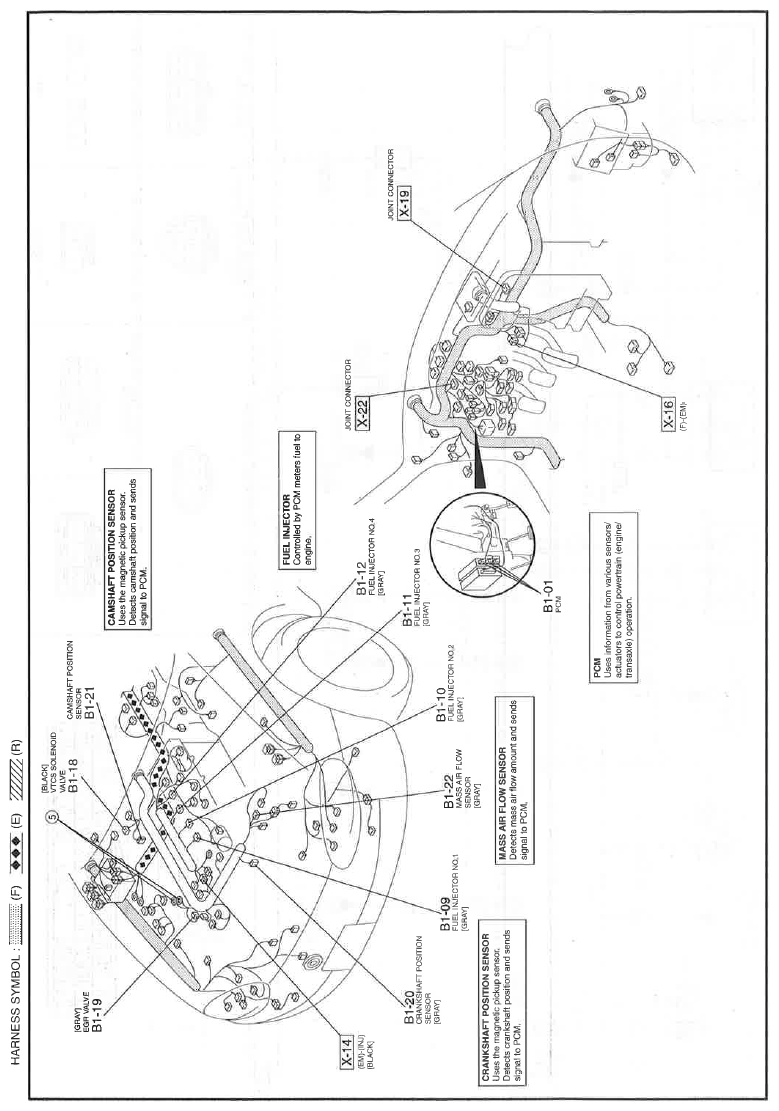

Fig 4: Engine Control System Wiring Diagram (B-1B; 2 Of 2)
G11542910Courtesy of MAZDA MOTORS CORP.

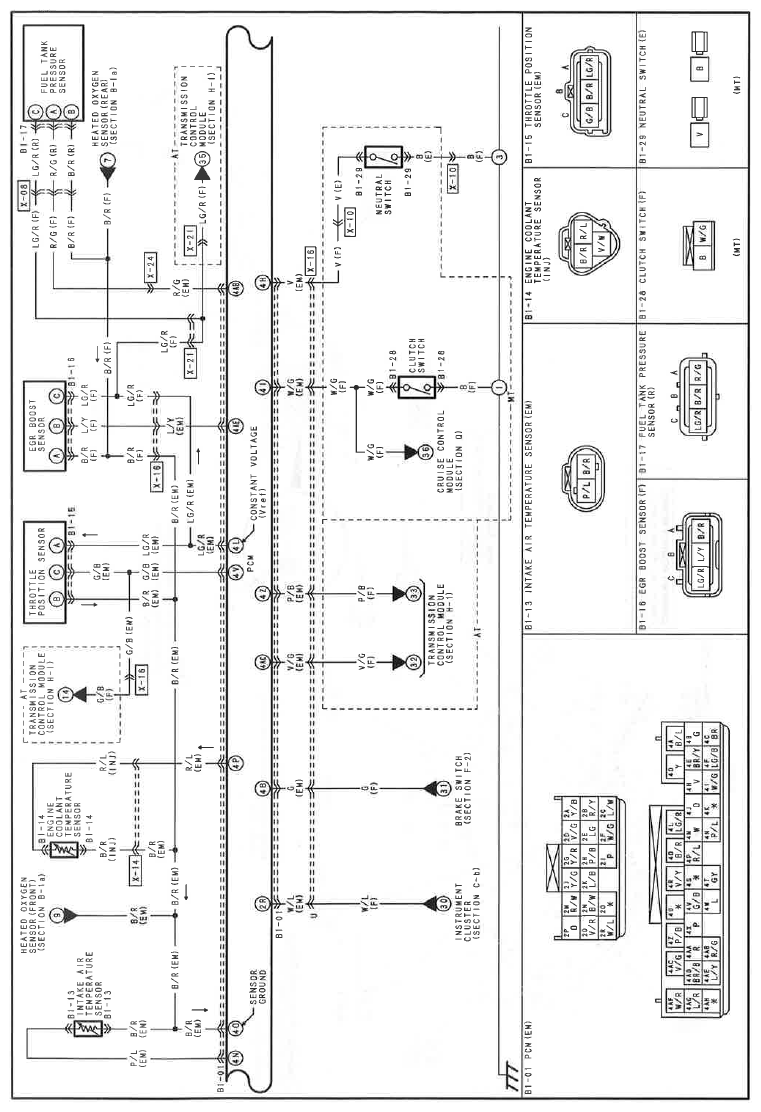

Fig 5: Engine Control System Wiring Diagram (B-1C; 1 Of 2)
G11542911Courtesy of MAZDA MOTORS CORP.

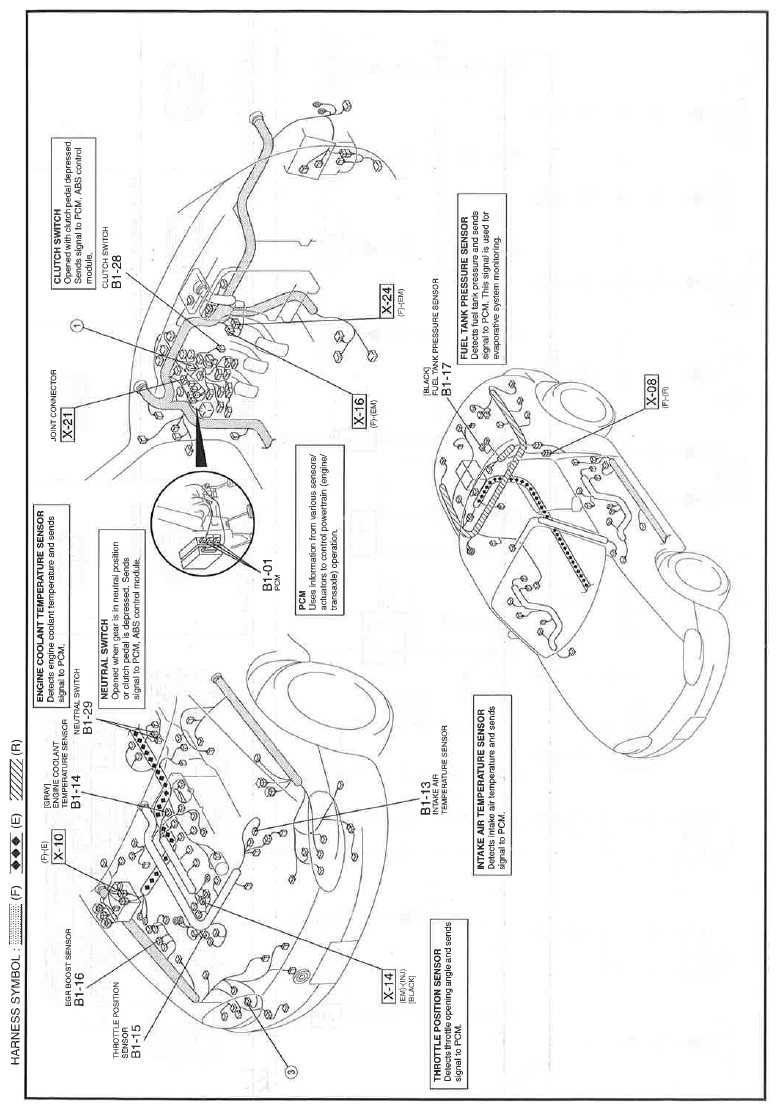

Fig 6: Engine Control System Wiring Diagram (B-1C; 2 Of 2)
G11542912Courtesy of MAZDA MOTORS CORP.

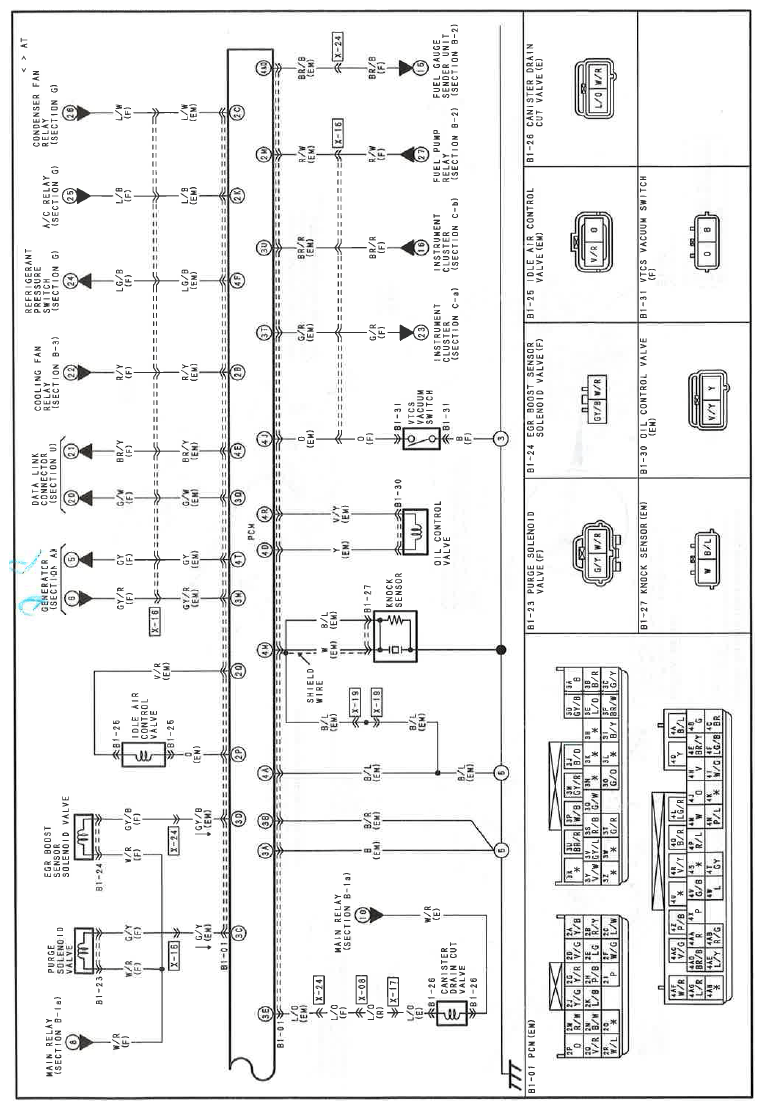

Fig 7: Engine Control System Wiring Diagram (B-1D; 1 Of 2)
G11542913Courtesy of MAZDA MOTORS CORP.

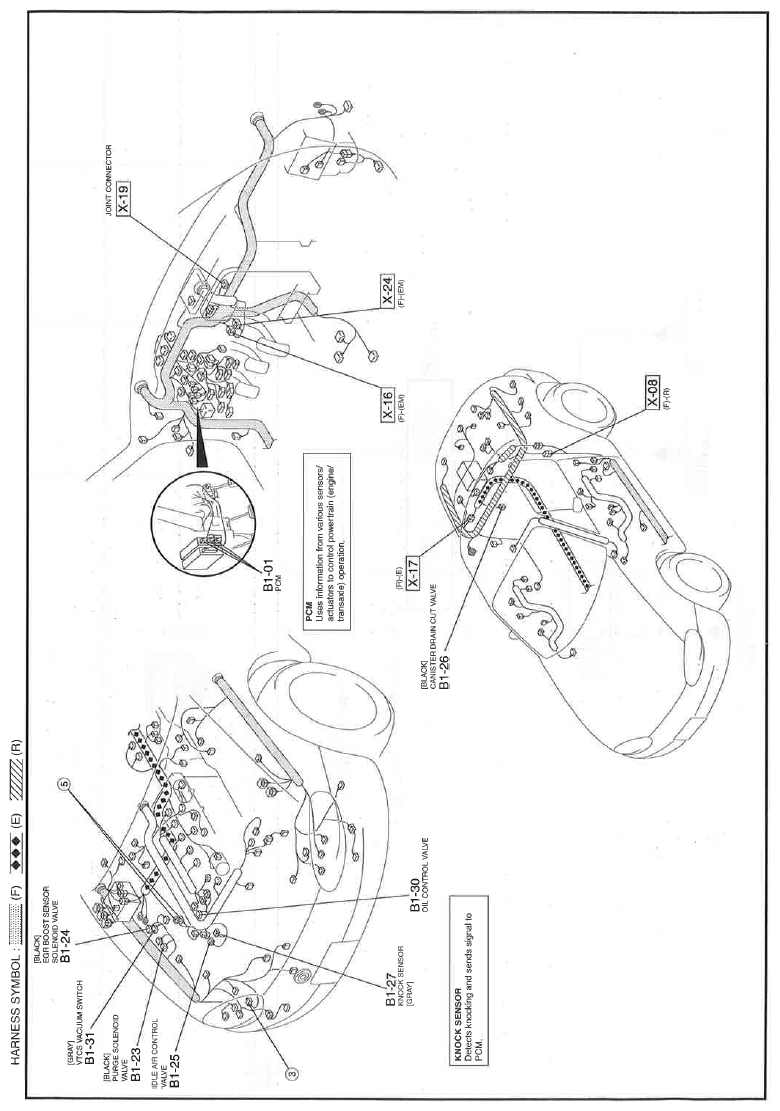

Fig 8: Engine Control System Wiring Diagram (B-1D; 2 Of 2)
G11542914Courtesy of MAZDA MOTORS CORP.
