Throttle Cable

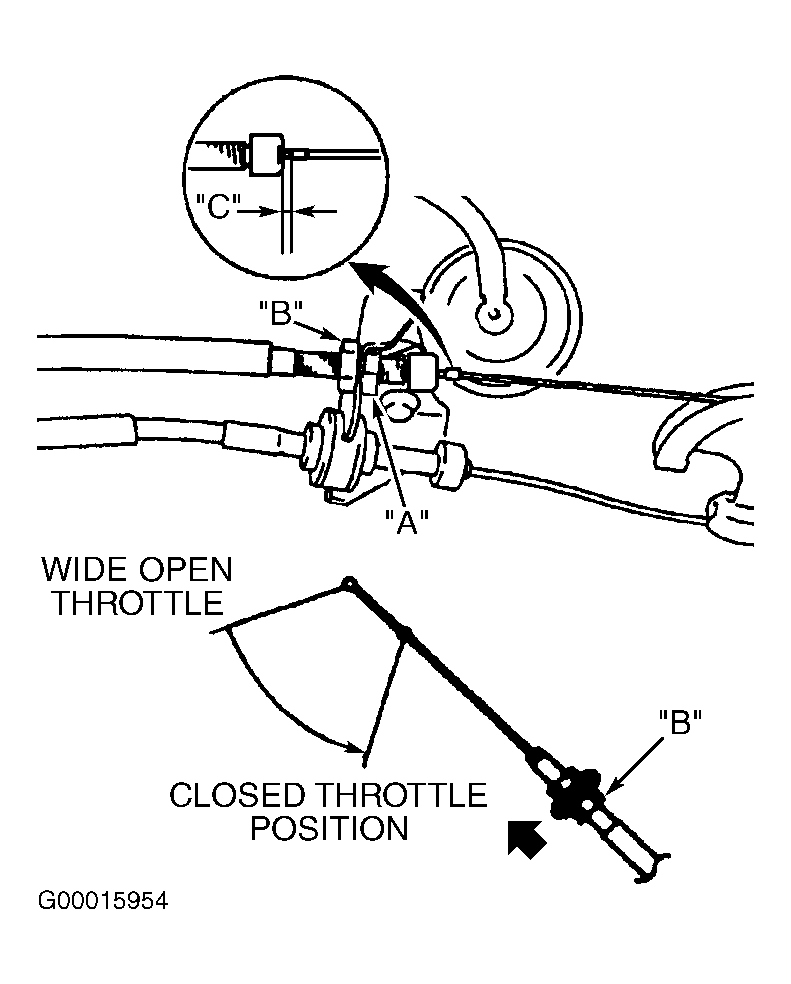

Loosen adjusting nuts "A" and "B". See Fig 1 . With throttle lever closed, adjust nut "B" to wide open throttle position. Tighten nut by hand. With throttle lever in closed position, push down on throttle cable, and tighten nut "A" to specification. See TORQUE SPECIFICATIONS . Ensure cable does not come off bracket. Throttle cable adjustment should be .03-.05" (.8-1.5 mm) at nut "C". See Fig 1 . Move throttle cable and verify smooth operation.
