Gearshift Lever

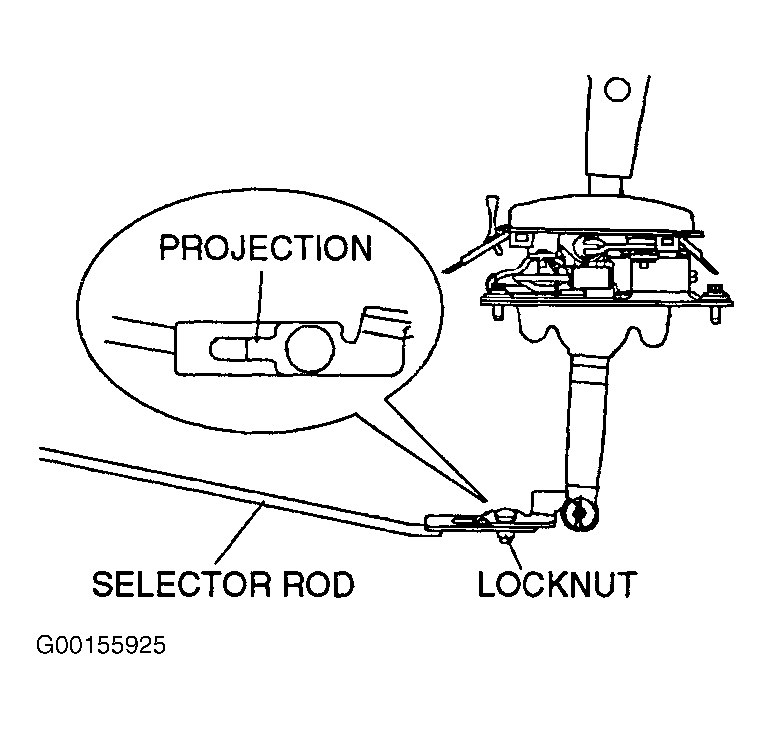

- Remove rear console, gearshift selector knob, sleeve, and indicator panel. Loosen lock nut at selector rod. See Fig 1
. Place gearshift selector lever in Park, by pushing adjustment lever forward.

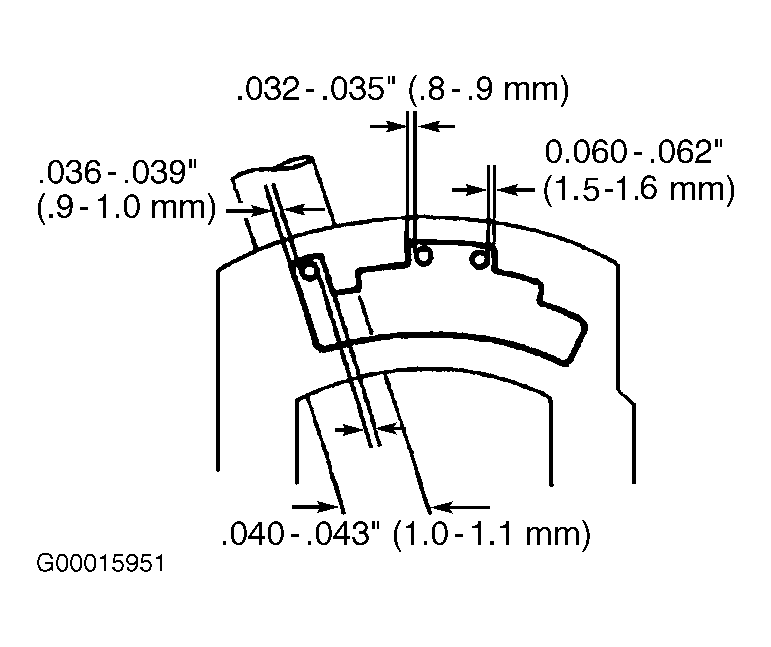

- Adjust lever so clearance between guide plate and guide pin are within tolerances, with push rod slightly depressed. See Fig 2
. Tighten selector rod lock nut to specification. See TORQUE SPECIFICATIONS
.
- Move gearshift from Neutral to Drive position. Verify clearance between guide plate and guide pin as shown in Fig 2
. If clearance is not as specified, readjust the lever. Install indicator panel, sleeve, gearshift selector knob and rear console.
