Elbow Installation Note

  1. Apply ATF to the O-ring, then install it to the elbow.
  2. Install the elbows in the angle shown in the figure, then tighten the nut.
    1. Tightening torque
    2. 34 N.m {3.5 kgf.m, 25 ft.lbf}

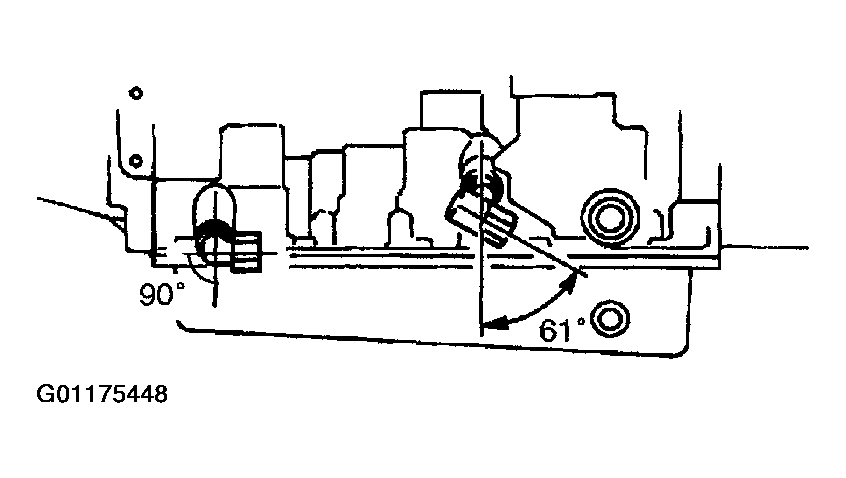

    Fig 1: Removing & Installing Oil Elbow
    G01175448Courtesy of MAZDA MOTORS CORP.
