Drive Plate Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

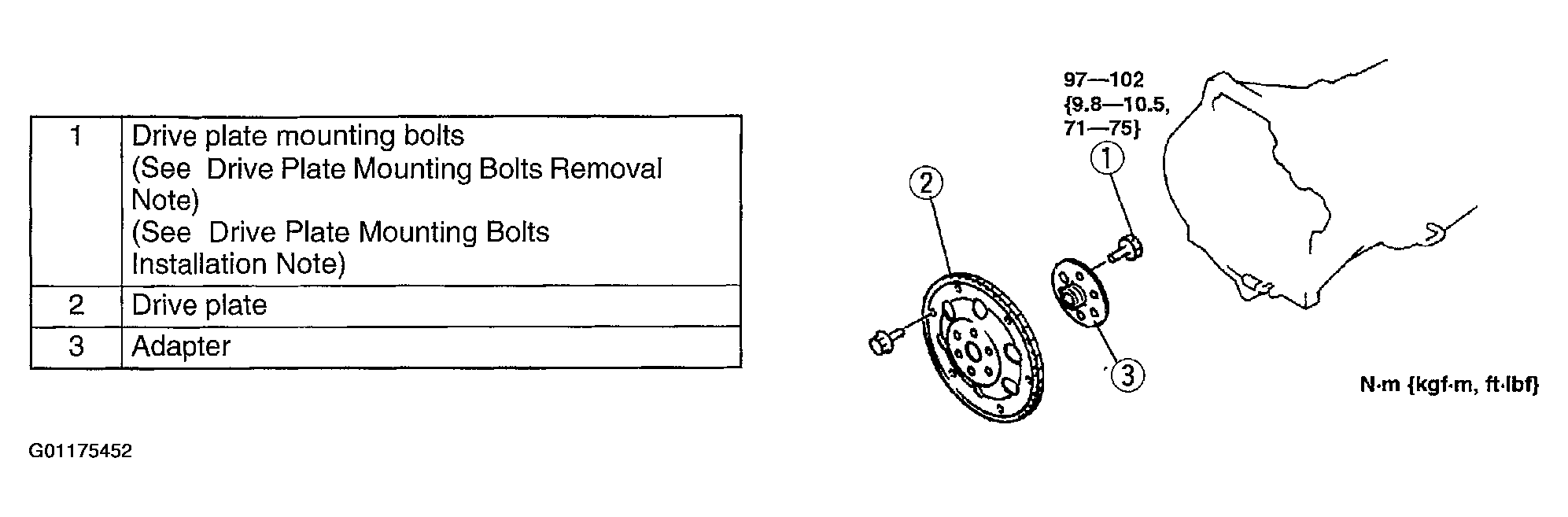

Fig 1: Removing & Installing Drive Plate
G01175452Courtesy of MAZDA MOTORS CORP.
