On-Vehicle Installation

Set the accumulator springs into the control valve body as shown.

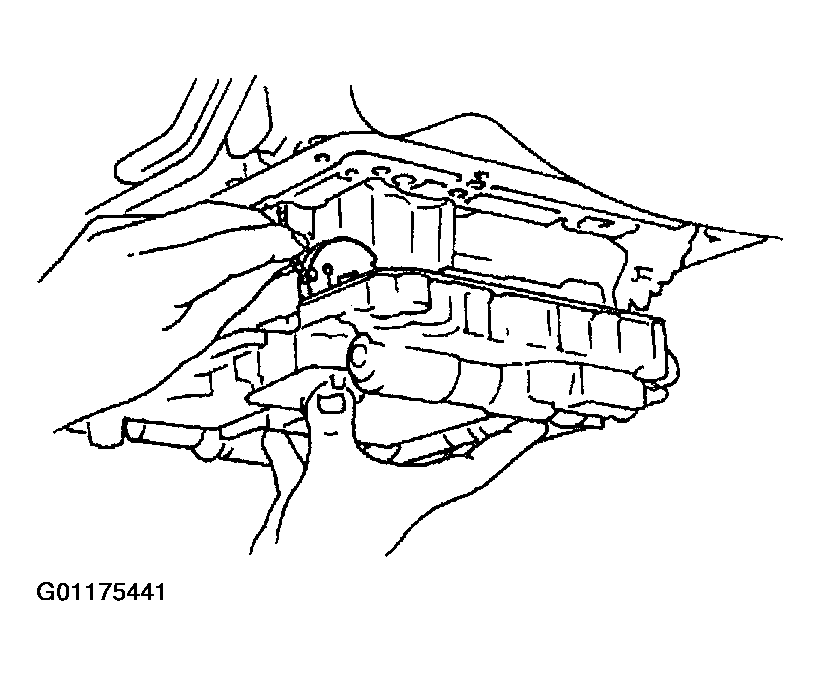

Fig 1: Installing Accumulator Springs Into Control Valve Body
Courtesy of MAZDA MOTORS CORP.
Install the nipple of the throttle cable to the throttle cam.
Verify that the manual valve and manual shaft are assembled correctly.
Install the control valve body.
1. Tightening torque
2. 7.9-11.7 N.m {80-120 kgf.cm, 70-104 in.lbf}

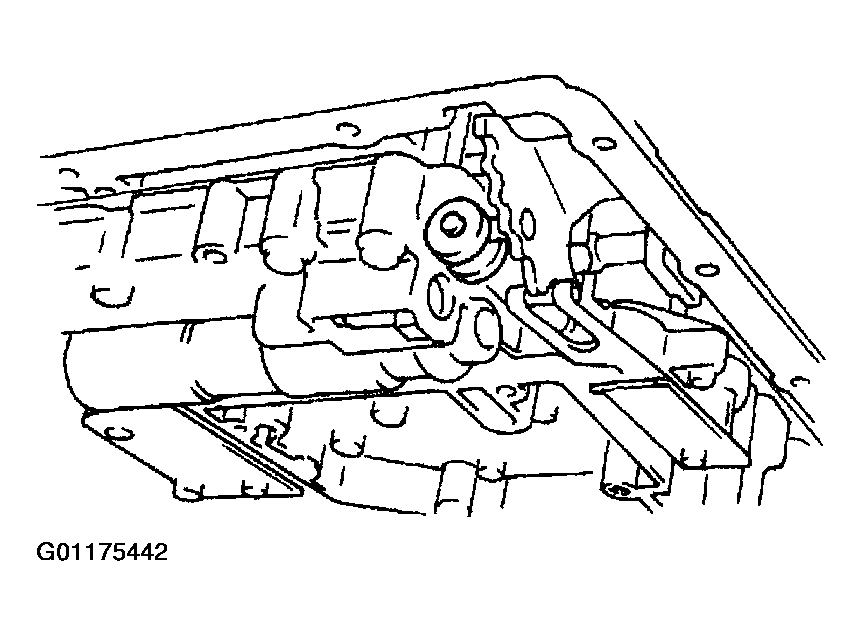

Fig 2: Installing Control Valve Body (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

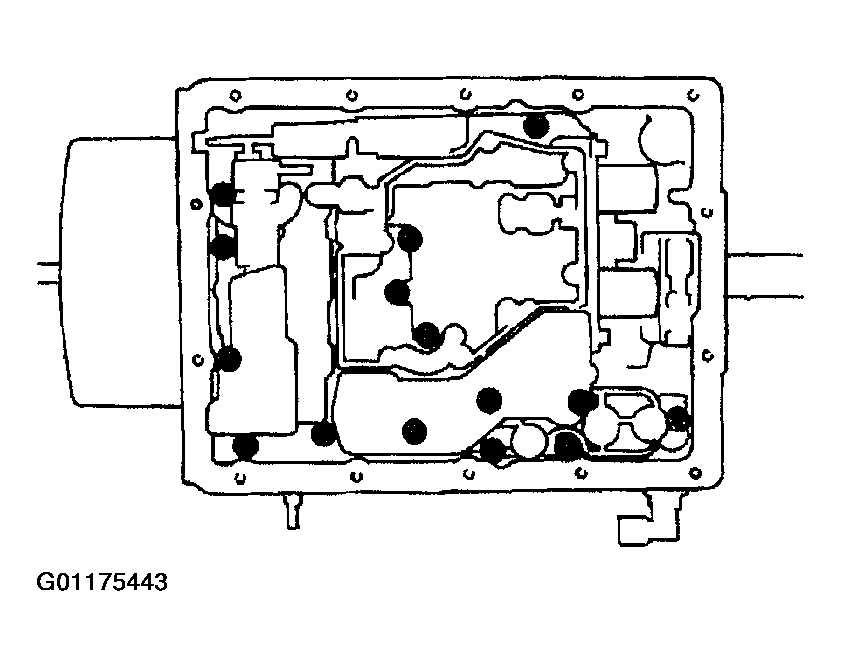

Fig 3: Installing Control Valve Body (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install the oil strainer.
1. Tightening torque
2. 5.0-5.8 N.m {50-60 kgf.cm, 44-52 in.lbf}
Connect shift solenoids A, B, and torque converter clutch solenoid valve connectors.

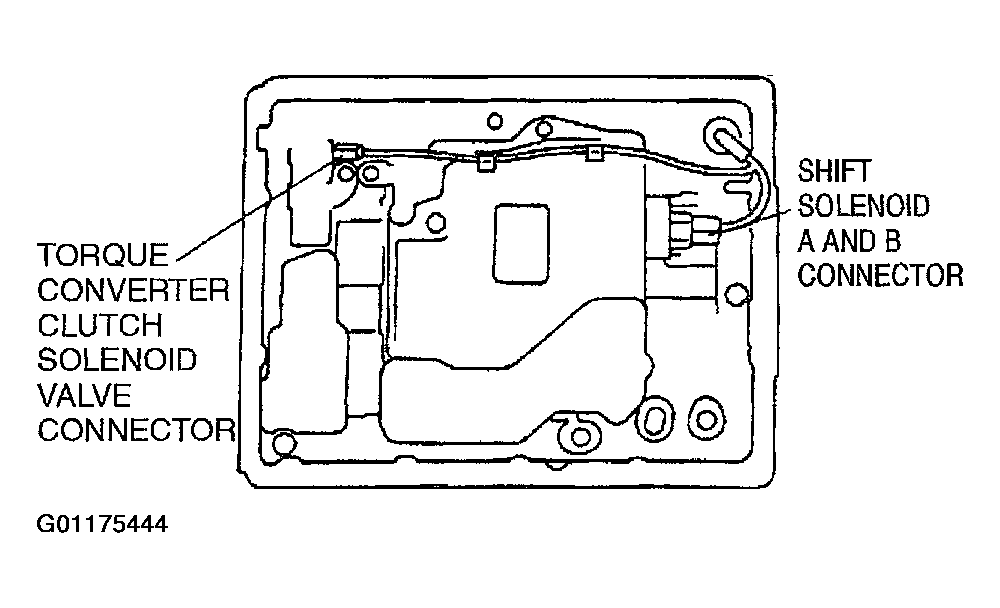

Fig 4: Connecting Shift Solenoids A, B & Torque Converter Clutch Solenoid Valve Connectors
Courtesy of MAZDA MOTORS CORP.
Install the tubes.

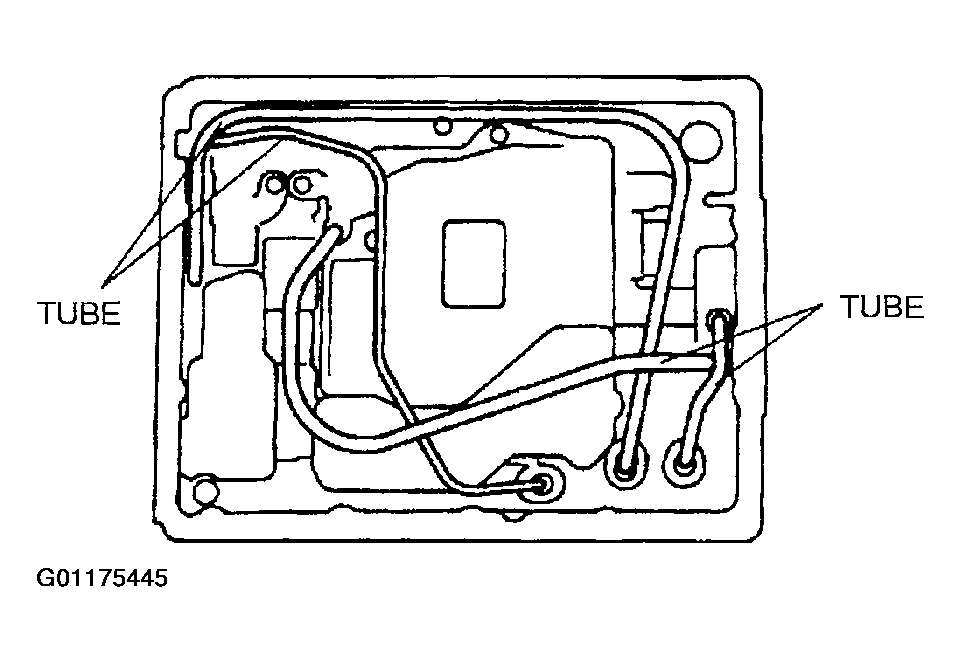

Fig 5: Installing Tubes
Courtesy of MAZDA MOTORS CORP.
Install the new gasket and oil pan.
1. Tightening torque
2. 4.0-4.9 N.m {40-50 kgf.cm, 35-43 in.lbf}
Add ATF to the specified level. See DRAINING & REFILLING .
Carry out the mechanical test. See MECHANICAL SYSTEM TEST .
Carry out the road test. See ROAD TEST .
