Torque Converter Bolts Installation Note
- Align the holes while turning the torque converter.

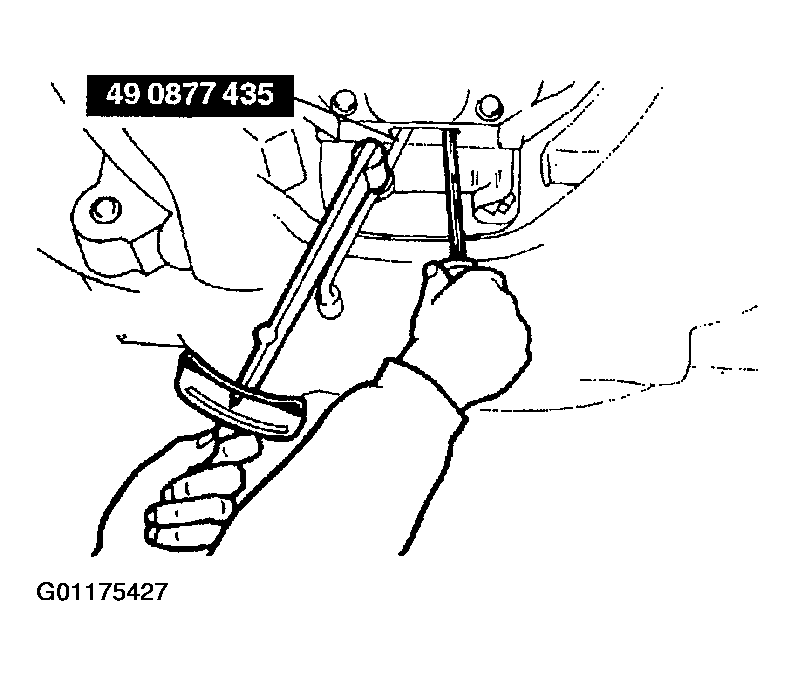

- Lock the drive plate using a screwdriver.
- Hand-tighten the torque converter mounting bolts in a crisscross pattern.
- Modify the torque converter mounting bolts tightening torque to allow for a torque wrench SST combination. .
- Tighten the torque converter mounting bolts using the SST
.
- Tightening torque
- 35-49 N.m {3.5-5.0 kgf.m, 26-36 ft.lbf}
