Automatic Transmission Removal/Installation: Notes
- Disconnect the negative battery cable.
- Drain the ATF. See DRAINING & REFILLING .
- Remove the cross member bracket. (16-inch wheel model) See CROSSMEMBER BRACKET REMOVAL/INSTALLATION
- Remove the rear crossbar. (16-inch wheel model) See REAR CROSSMEMBER .
- Remove the exhaust system. See EXHAUST SYSTEM REMOVAL/INSTALLATION .
- Remove the propeller shaft. See PROPELLER SHAFT REMOVAL/INSTALLATION
.WARNING:
- Improperly jacking a transmission is dangerous. It can slip off the jack and cause serious injury.

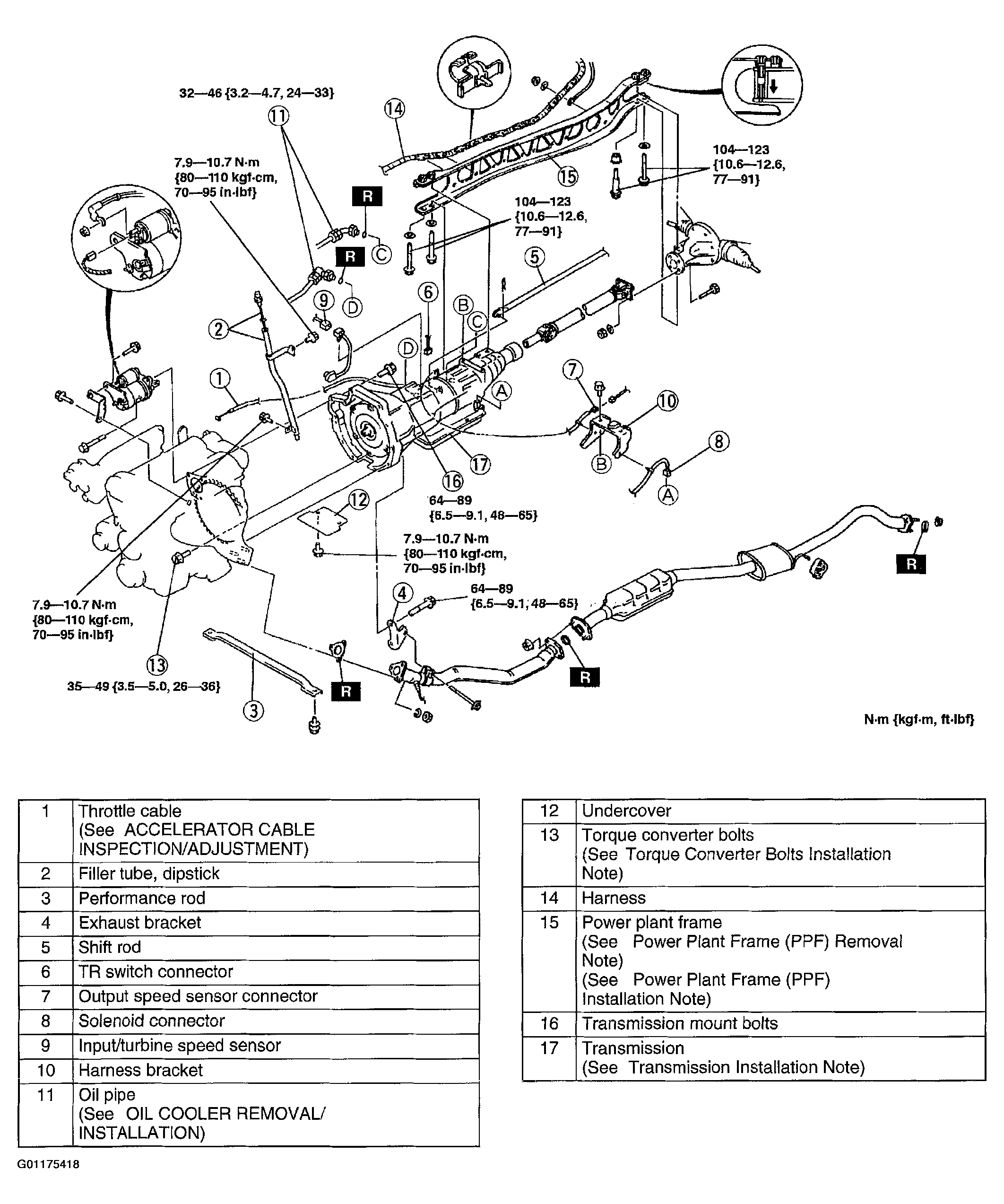

- Remove in the order indicated in the table. See Fig 1 .
- Install in the reverse order of removal.
- Add ATF to the specified level. See DRAINING & REFILLING .
- Connect the negative battery cable.
- Inspect the operation of the transmission range switch. See TRANSMISSION RANGE SWITCH .
- Inspect the operation of the selector lever.
- Carry out the mechanical system test. See MECHANICAL SYSTEM TEST .
- Carry out the road test. See ROAD TEST .
