Low And Reverse Brake Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure.

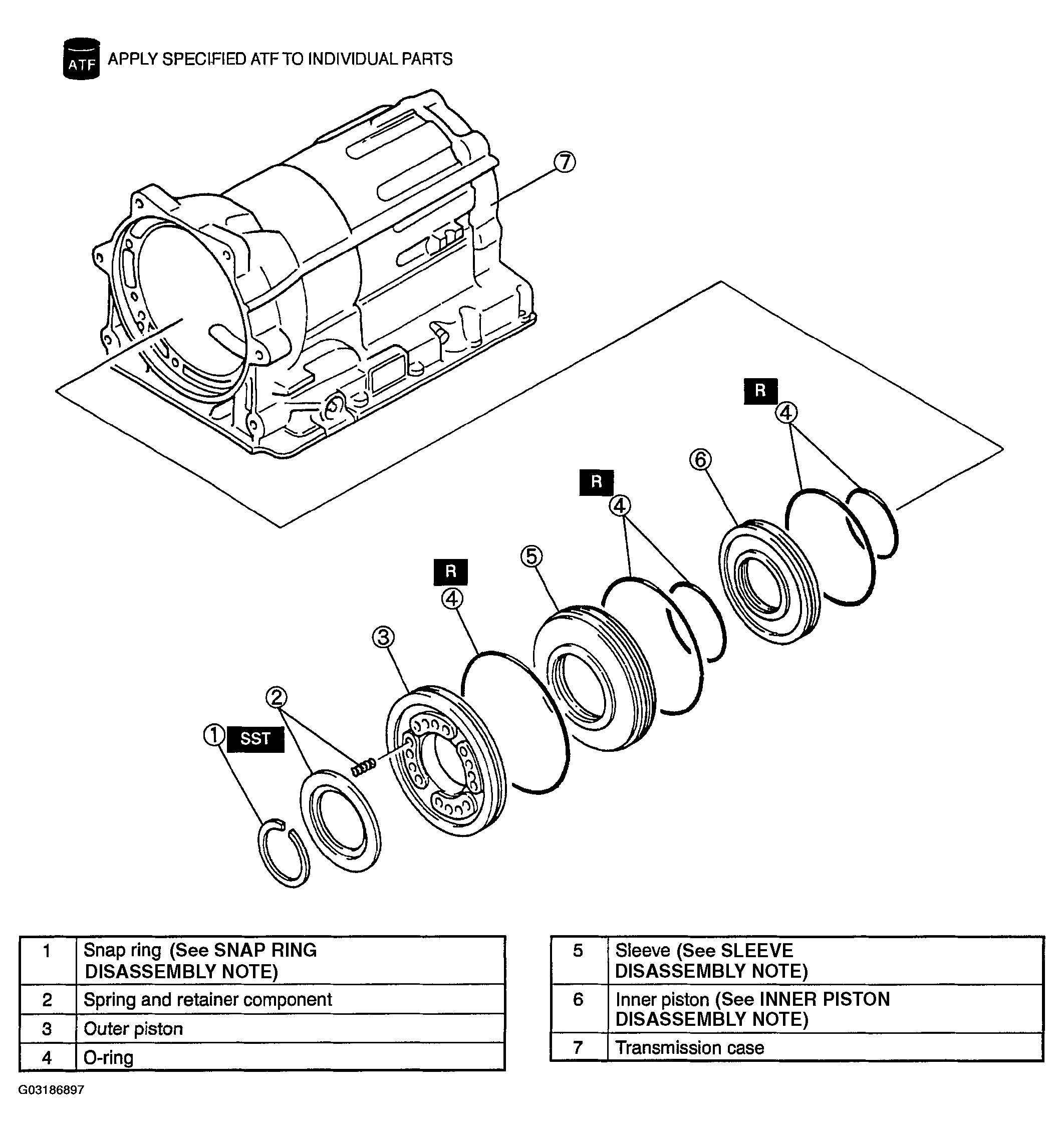

    2. Fig 1: Disassembling/Assembling Low & Reverse Brake
    G03186897Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
