Assembly Procedure

  1. Apply ATF to the new O-ring.
  2. Install the O-ring to the piston and sleeve.
  3. Install the inner piston and outer piston to the sleeve.
  4. Install the piston and sleeve to the transmission case.
  5. Install the spring and retainer component and snap ring.
  6. Install the SSTs  .
    7. CAUTION:
    • Depress the piston return spring only enough to install the snap ring. Overpressing will damage the retainer component edges.
  7. Compress the spring retainer component.

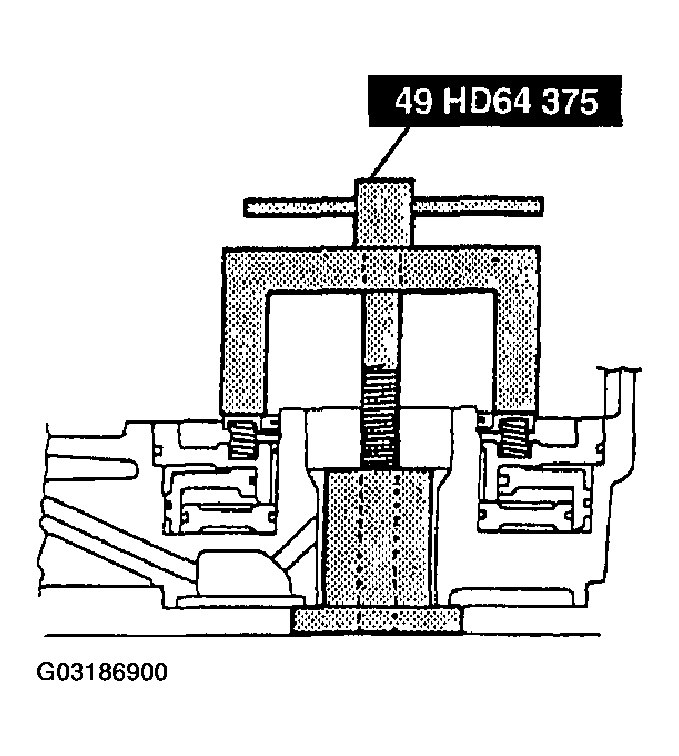

    8. Fig 1: Compressing Spring Retainer Component
    G03186900Courtesy of MAZDA MOTORS CORP.
  8. Install the snap ring.
  9. Remove the SSTs  .
