Inner Snap Ring Disassembly Note

  1. Install the SSTs  to the direct clutch hub.
    2. CAUTION:
    • Depress the piston return spring only enough to remove the snap ring. Overpressing will damage the retainer component edges.
  2. Compress the piston return spring.
  3. Remove one end of the snap ring from the groove with snap ring pliers.

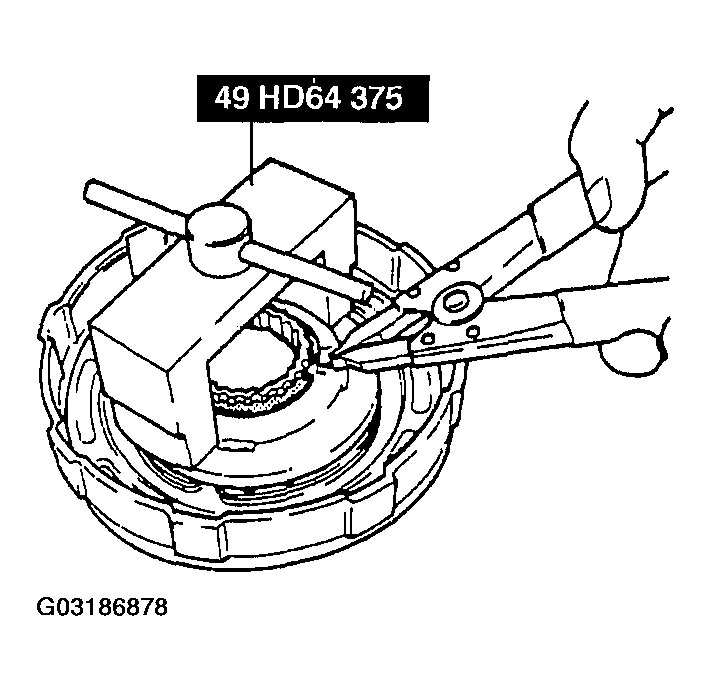

    Fig 1: Removing Snap Ring
    G03186878Courtesy of MAZDA MOTORS CORP.
  4. Remove the SSTs  .
