Upper Front Valve Body Disassembly/Assembly

CAUTION:
  • Denting or scratching these precisely machined components will reduce the ability of the transmission to shift properly. When handling these components or the valve body that contains them, be careful not to drop or hit them.
NOTE:
  • If a valve does not slide out under its own weight, place the valve body open side down and tap on the valve body lightly with a plastic hammer.
  1. Disassemble in the order indicated in the figure.

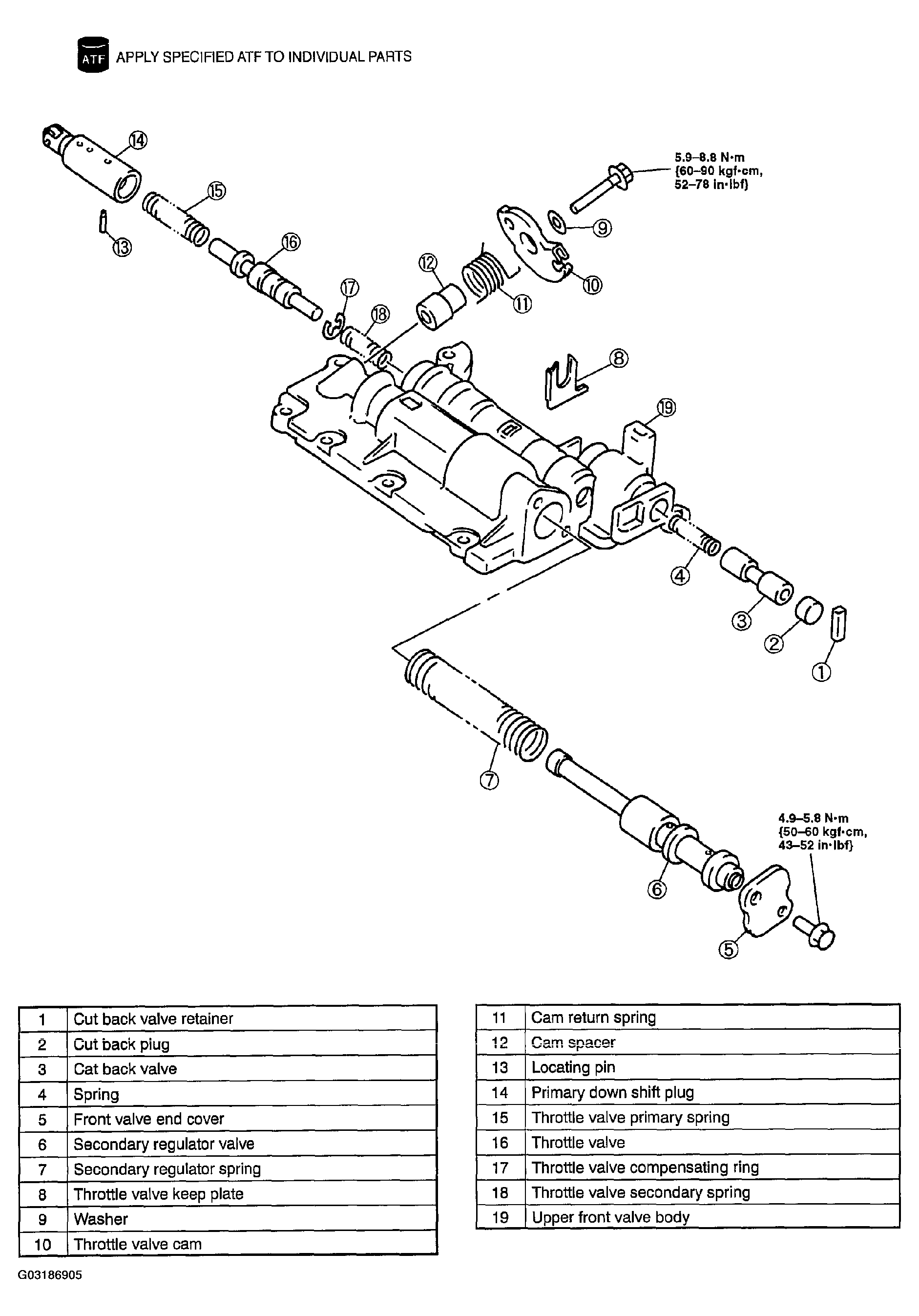

    2. Fig 1: Disassembling/Assembling Upper Front Valve Body
    G03186905Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Using compressed air can causing dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
  2. Clean all parts and holes by using compressed air and apply ATF to them immediately before assembly.
  3. Assemble in the reverse order of disassembly.
