4GR Case And 4GR Brake Disassembly/Assembly: Notes

  1. Carry out the preinspection before disassembly. (Refer to AUTOMATIC TRANSMISSION INSPECTION  , 4GR CASE AND 4GR BRAKE PREINSPECTION CLUTCH CLEARANCE  .)
  2. Disassemble in the order indicated in the figure.

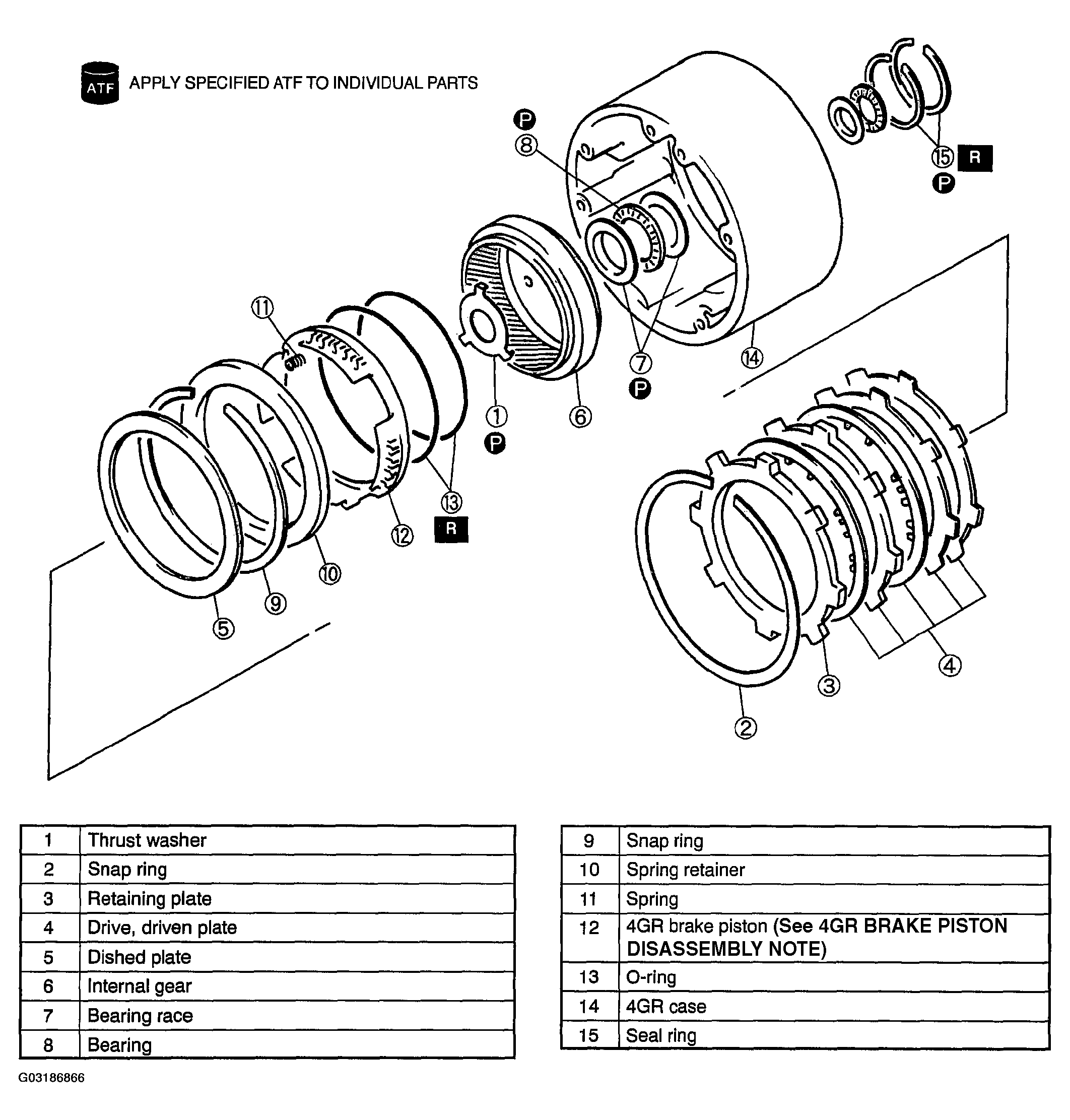

    3. Fig 1: Disassembling/Assembling 4GR Case & 4GR Brake
    G03186866Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
