Shift Speed Specifications

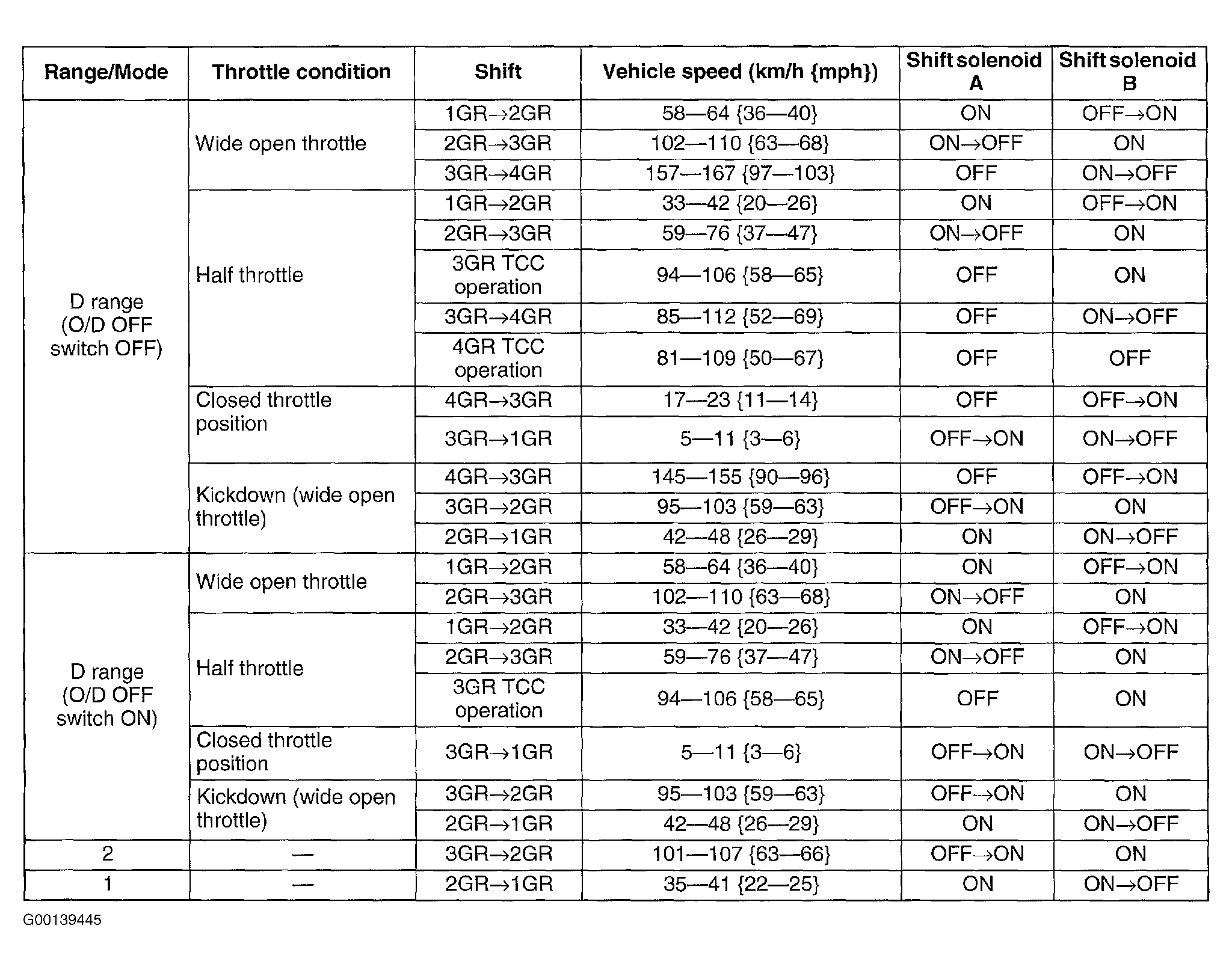

Fig 1: SB4A-EL Shift Speed Specifications

G00139445

Courtesy of MAZDA MOTORS CORP.

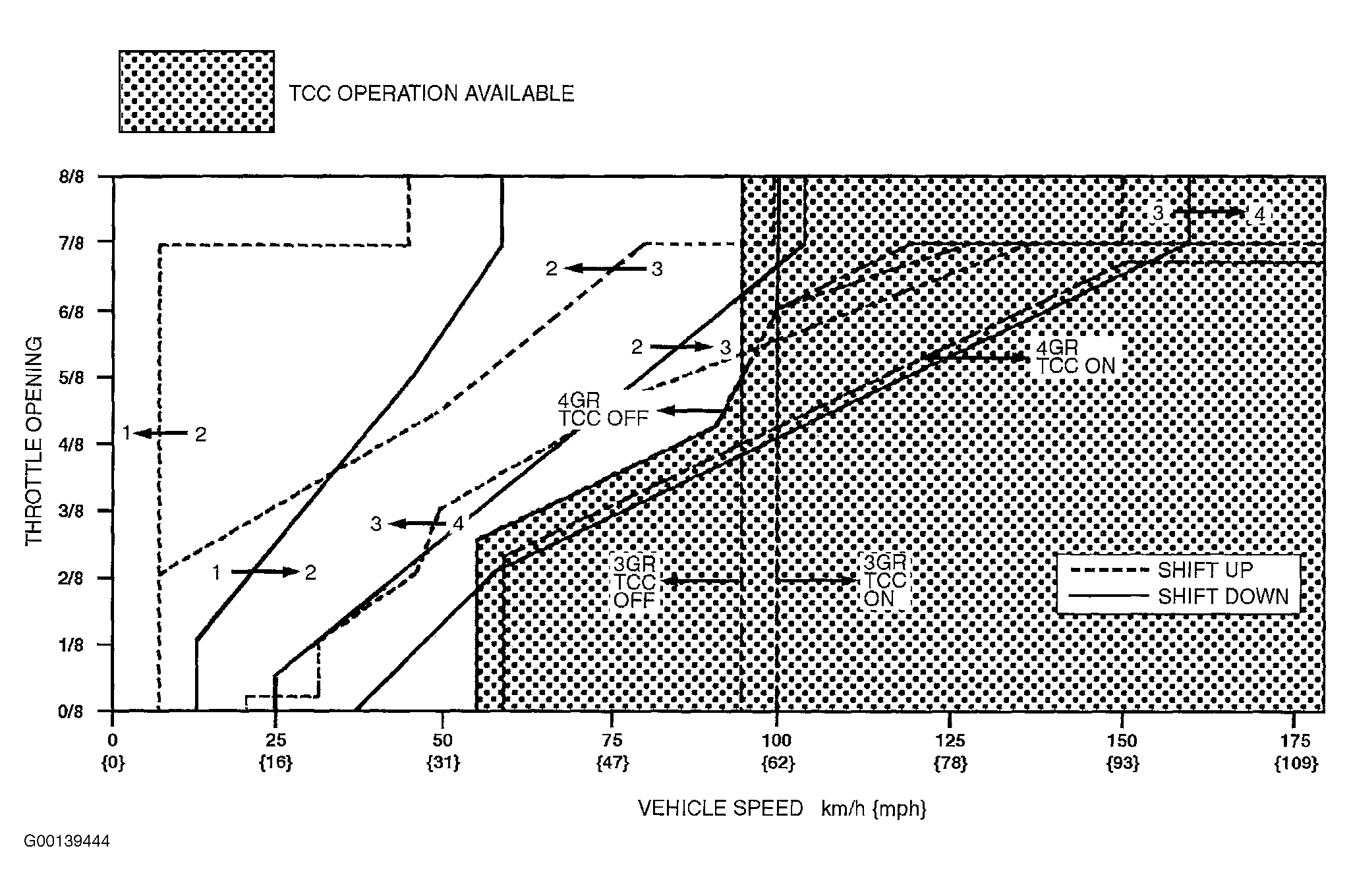

Fig 2: SB4A-EL Shift Speed Schematic

G00139444

Courtesy of MAZDA MOTORS CORP.
