Connector Identification

NOTE: For connector X-09 terminal identification, see CONNECTOR X-09 TERMINAL IDENTIFICATION  table. For connector X-10, terminal "V" is for input/turbine sensor and terminal "X" is for input/turbine sensor ground. See Fig 1 .

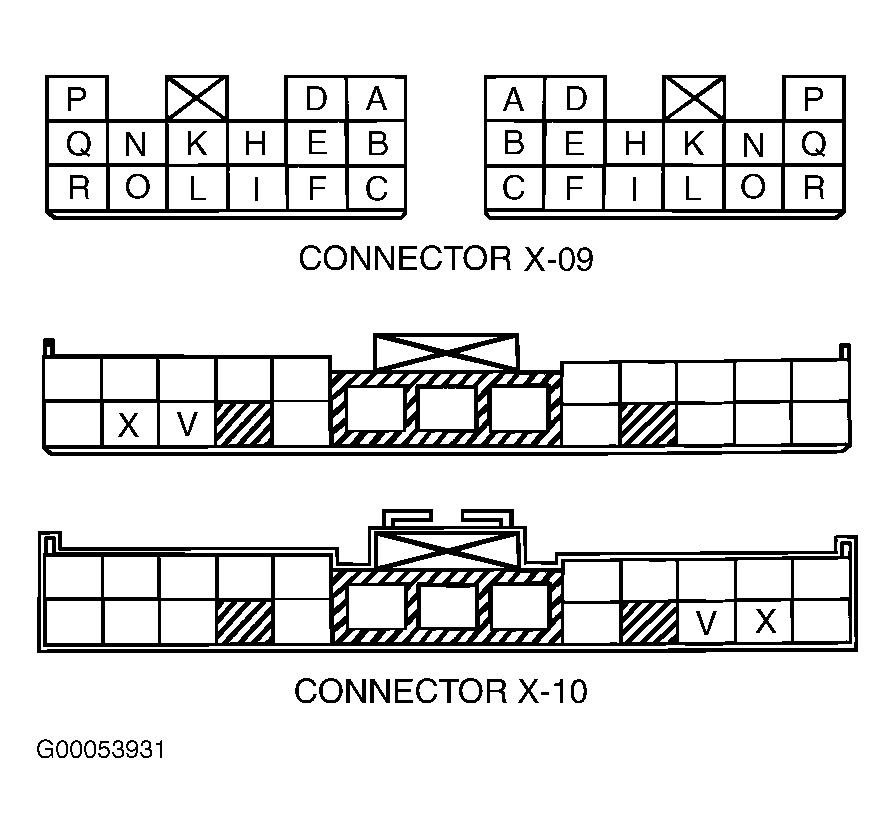

Fig 1: Identifying Connector X-09 & X-10 Connector Terminals
G00053931Courtesy of MAZDA MOTORS CORP.
CONNECTOR X-09 TERMINAL IDENTIFICATION

Terminal (1) Description
C TR Switch "R"
E OSS Ground
F OSS
H TCC Solenoid
I TR Switch "1"
K Shift Solenoid "B"
L Shift Solenoid "A"
N TR Switch "2"
Q TR Switch "P" & "N"
R TR Switch "D"
(1) Only connector terminals used by transmission are identified.
