Output Shaft Speed Sensor

Disconnect OSS sensor connector. Measure resistance between component connector terminals. Resistance should be 387-473 ohms at 68°F (20°C). See Fig 1 . Replace as needed.

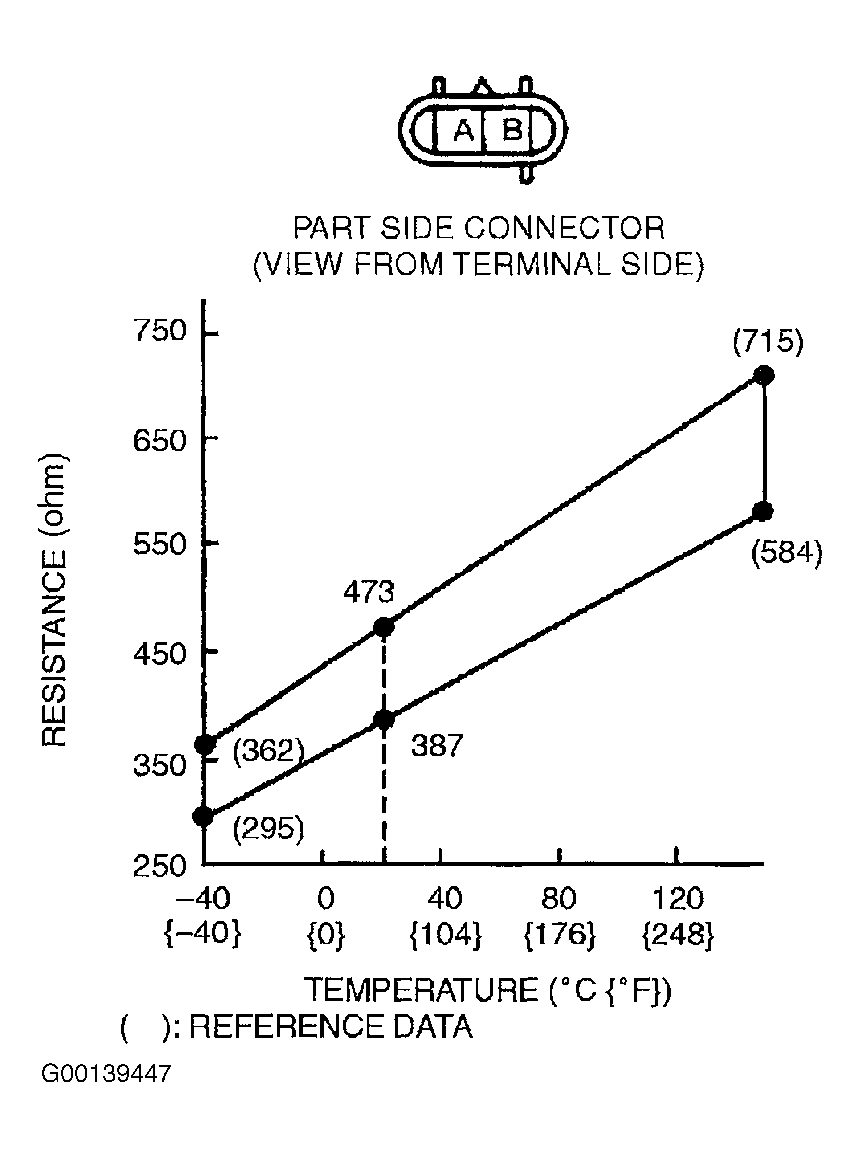

Fig 1: Output Shaft Speed Sensor Resistance Chart

Courtesy of MAZDA MOTORS CORP.
