Front Strut Bar Removal/Installation

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

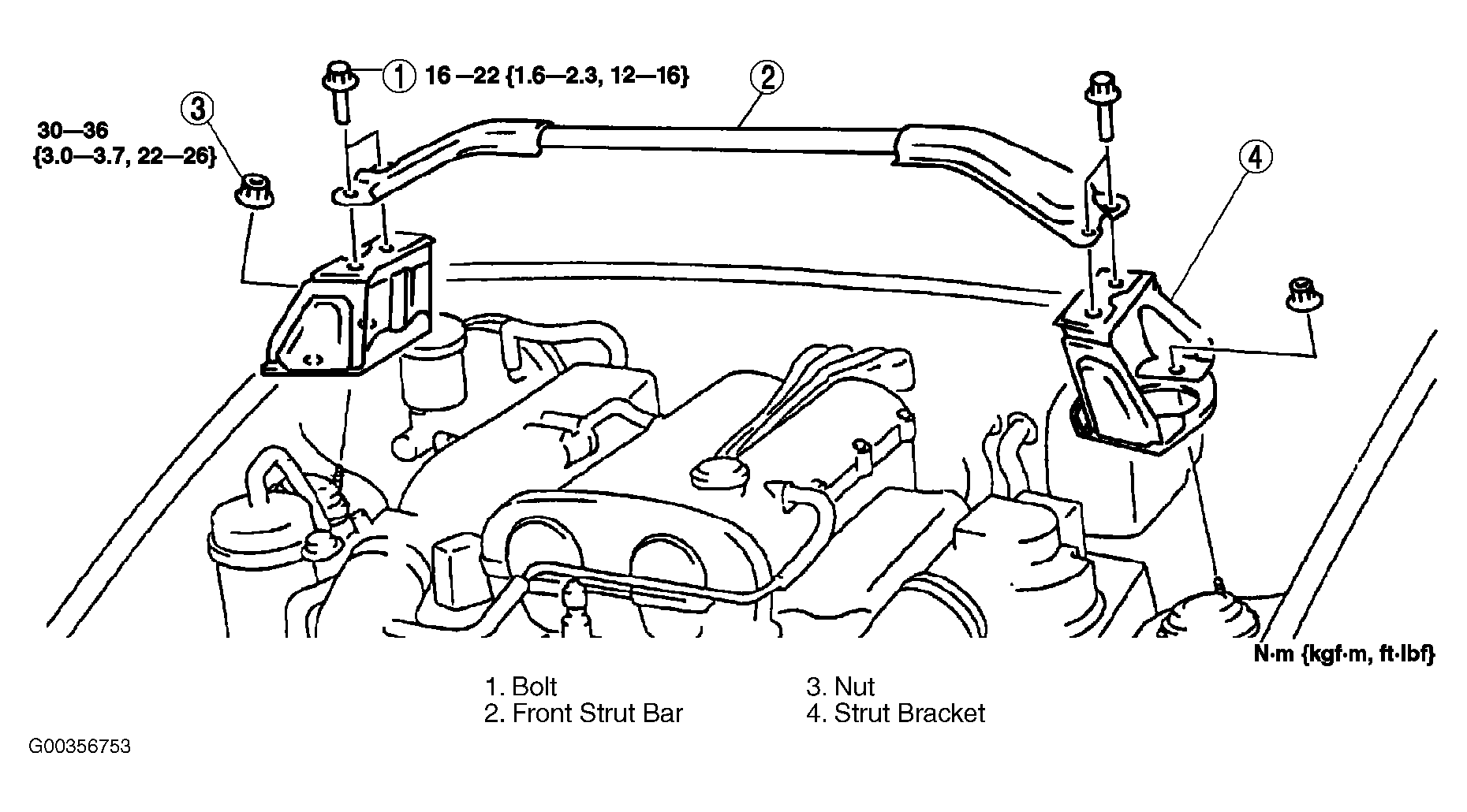

Fig 1: Front Strut Bar Removal & Installation
G00356753Courtesy of MAZDA MOTORS CORP.
