Steering Lock Mounting Bolts and Bracket Disassembly Note

  1. Use a chisel to make a groove in the heads of the steering lock mounting bolts. Remove the bolts with a screwdriver. Remove the steering lock component.

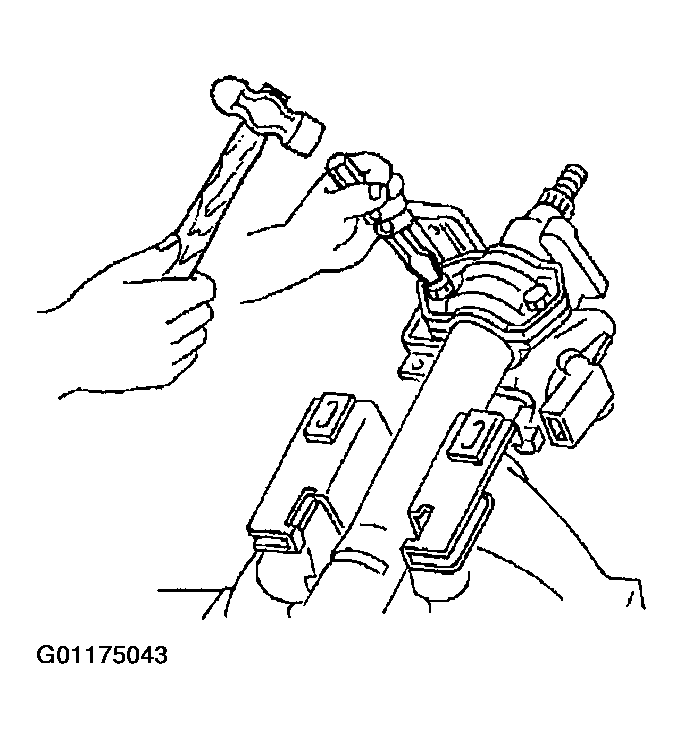

Fig 1: Disassembling Steering Lock Mounting Bolts & Bracket
G01175043Courtesy of MAZDA MOTORS CORP.
