Front Shock Absorber And Coil Spring Removal Note

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the lower arm ball joint. See LOWER ARM BALL JOINT REMOVAL NOTE .
Loosen the lower arm bolts.
Lower the lower arm to remove the shock absorber.

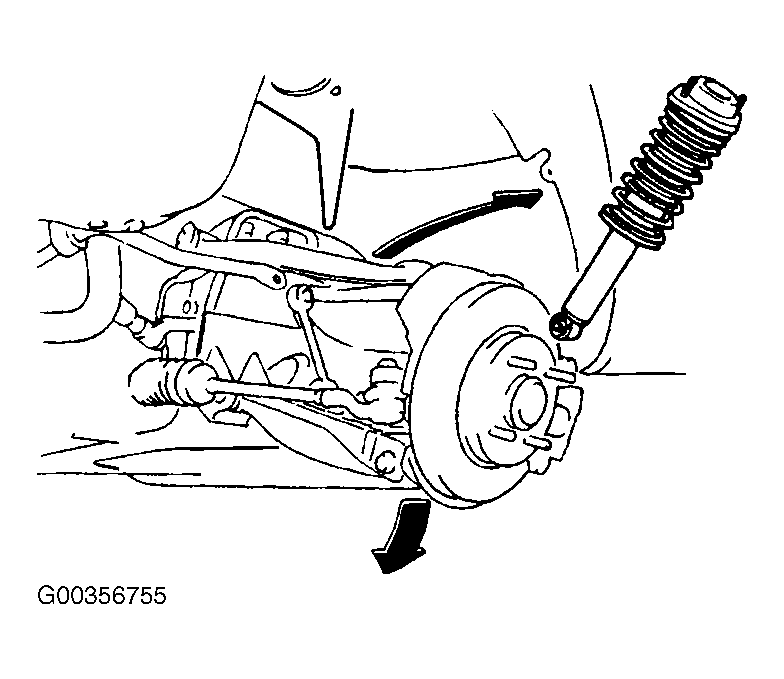

Fig 1: Removing Front Shock Absorber

Courtesy of MAZDA MOTORS CORP.

CAUTION: Do not lower the arms excessively, doing so may damage the brake hose.
