Home >> Mazda >> 2002 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Oil Pan Removal/Installation >> Engine Mount Nut Removal Note

Engine Mount Nut Removal Note

  1. Loosen the oil pan mounting bolts.
  2. Remove the engine mounting nuts.
  3. Lift the engine slightly using a hoist.

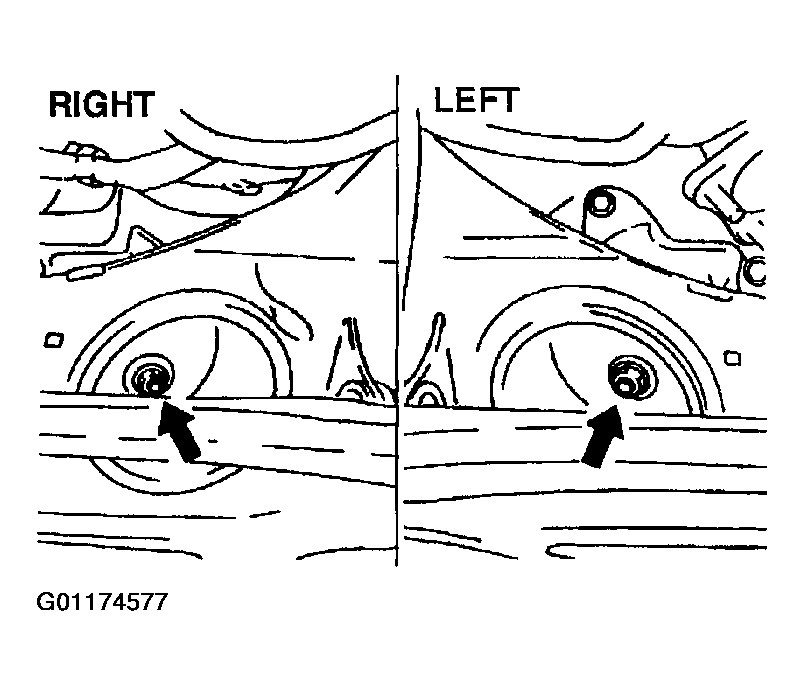

    Fig 1: Locating Engine Mounting Nuts
    G01174577Courtesy of MAZDA MOTORS CORP.
