Oil Cooler Removal/Installation

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. See ENGINE COOLANT REPLACEMENT .
  3. Remove the intake manifold bracket.
  4. Remove the oil filter. See OIL FILTER REPLACEMENT  .
  5. Remove in the order indicated in the table.
    Fig 1: Oil Cooler Removal Sequence Table
    G01174574Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Inspect the engine oil level. See ENGINE OIL LEVEL INSPECTION  .
  8. Start the engine and inspect for engine oil leakage.

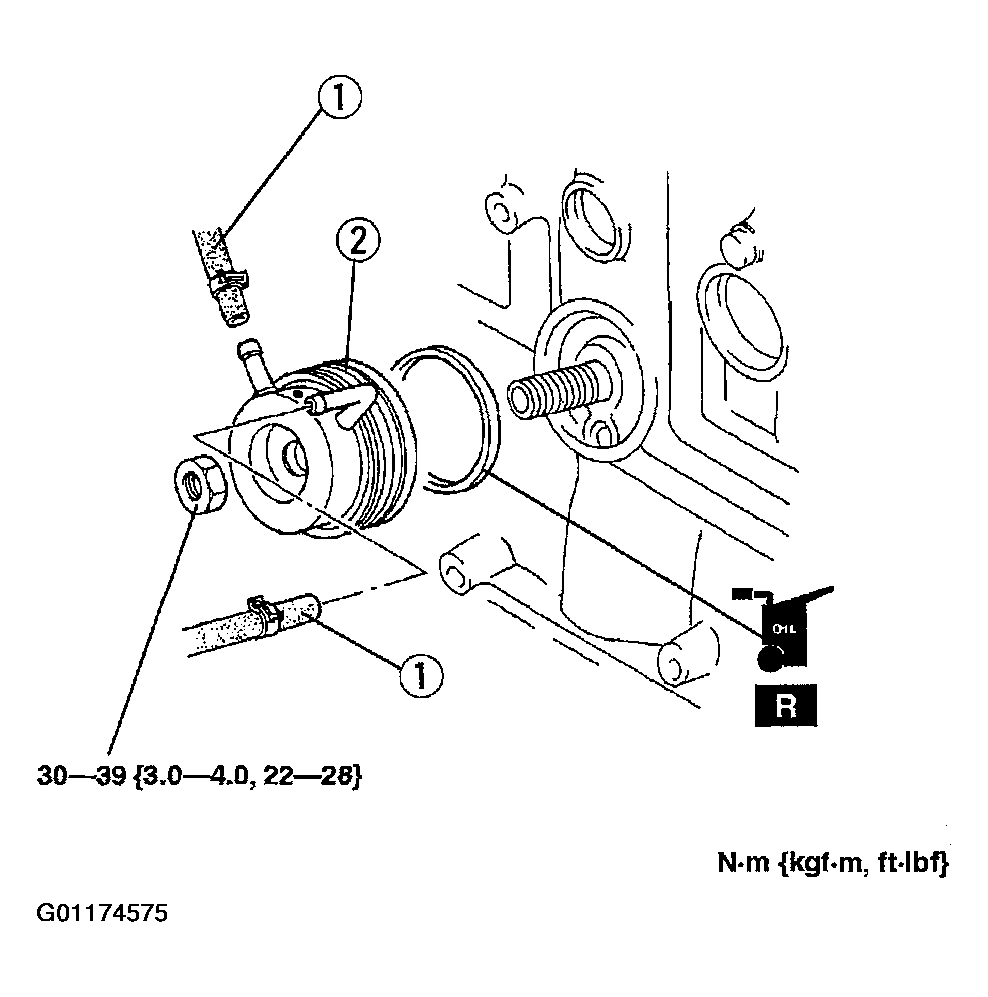

    Fig 2: Removing & Installing Oil Cooler
    G01174575Courtesy of MAZDA MOTORS CORP.
