Drive Belt Inspection: Deflection

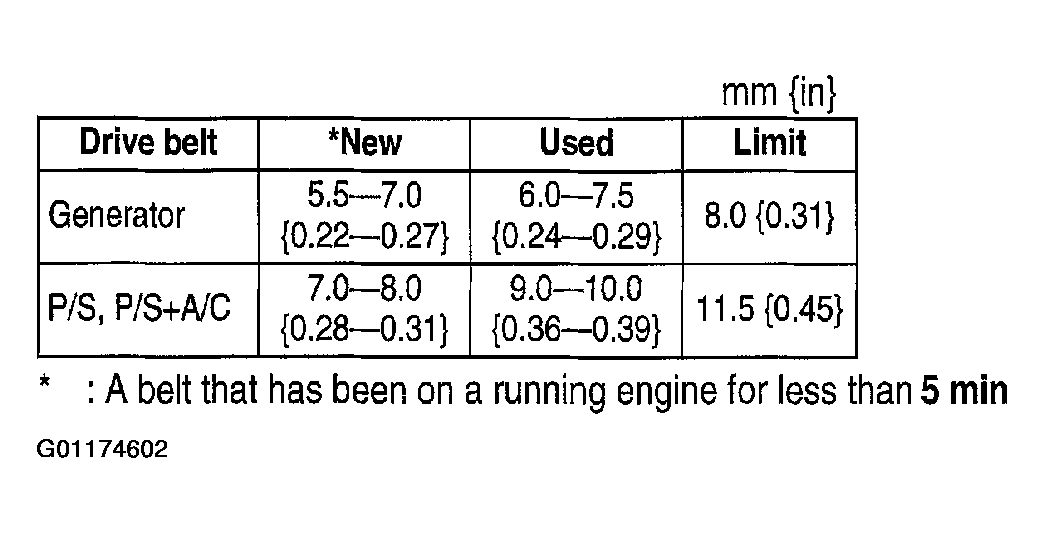

Fig 1: Belt Deflection Specifications Table

G01174602

Courtesy of MAZDA MOTORS CORP.

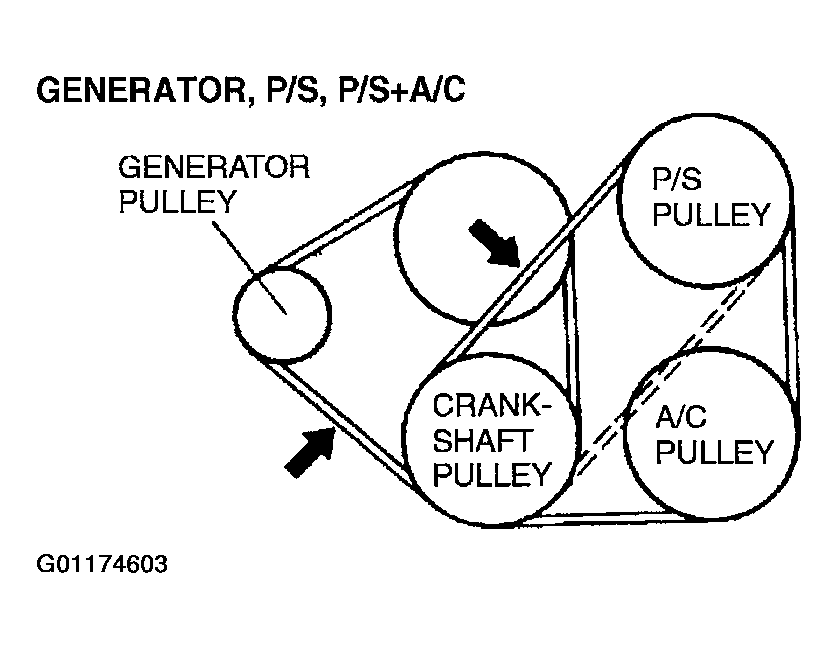

Fig 2: Identifying Belt Routing

G01174603

Courtesy of MAZDA MOTORS CORP.
