Condenser Fan Relay

  1. Disconnect the negative battery cable.
  2. Remove cooling fan relay.
  3. Using an ohmmeter, inspect for continuity between the relay terminals. See Fig 1 . If continuity is not as specified, replace relay.

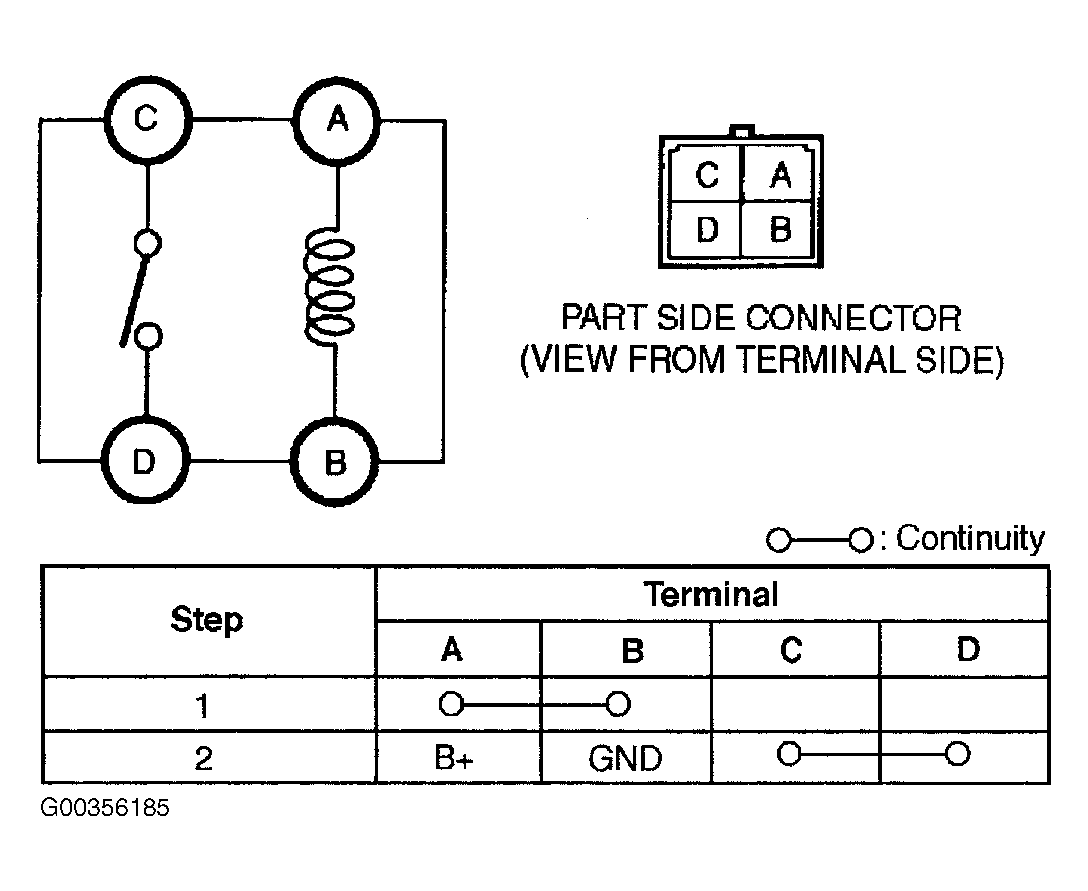

Fig 1: Testing Condenser Fan Relay
G00356185Courtesy of MAZDA MOTORS CORP.
