Component Location

For component locations, refer to illustrations. See Fig 1 -Fig 3 .

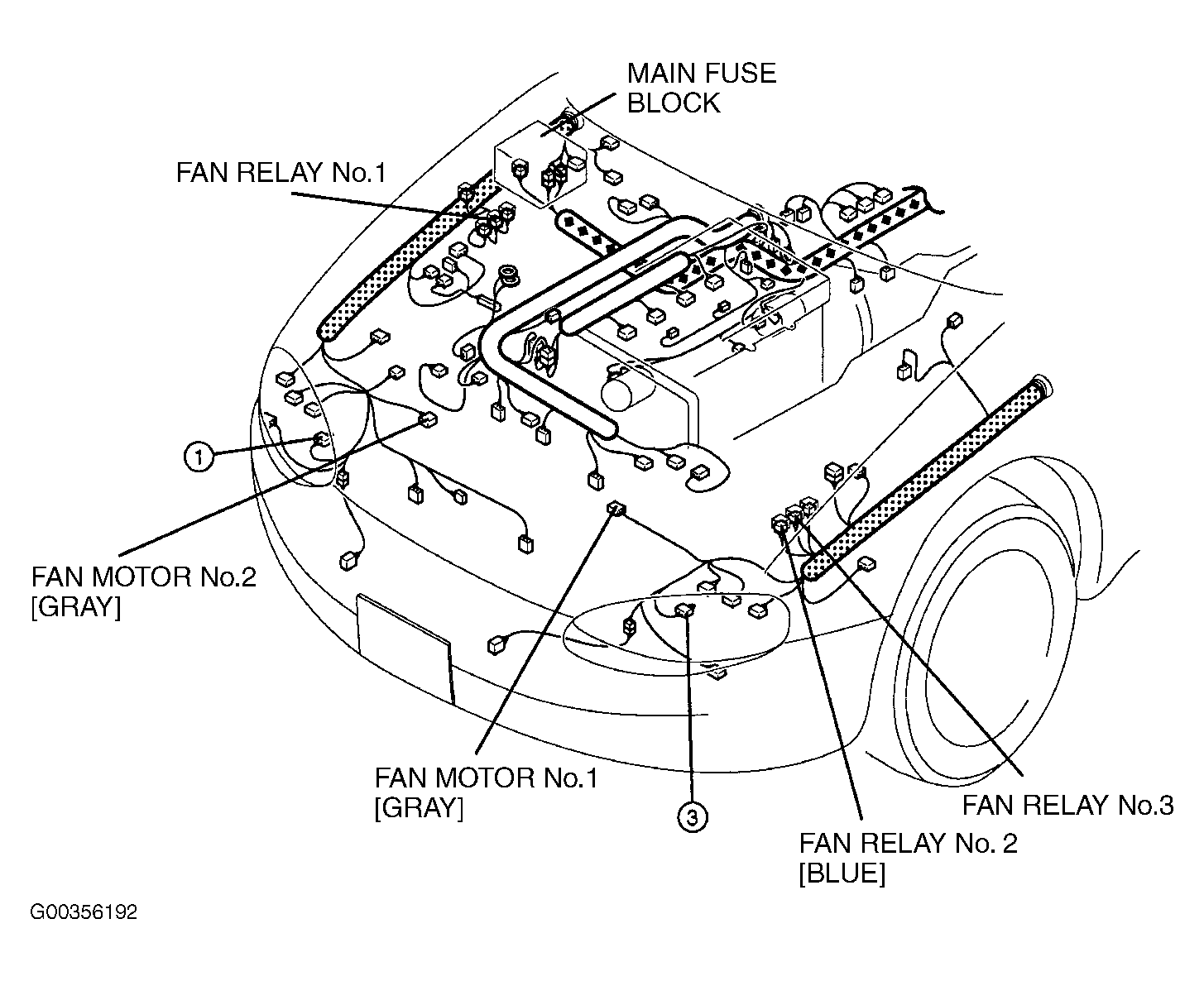

Fig 1: Locating Cooling Fan System Component Connectors

Courtesy of MAZDA MOTORS CORP.

Fig 2: Locating Cooling Fan Connectors & Relays (With Turbocharger)

Courtesy of MAZDA MOTORS CORP.

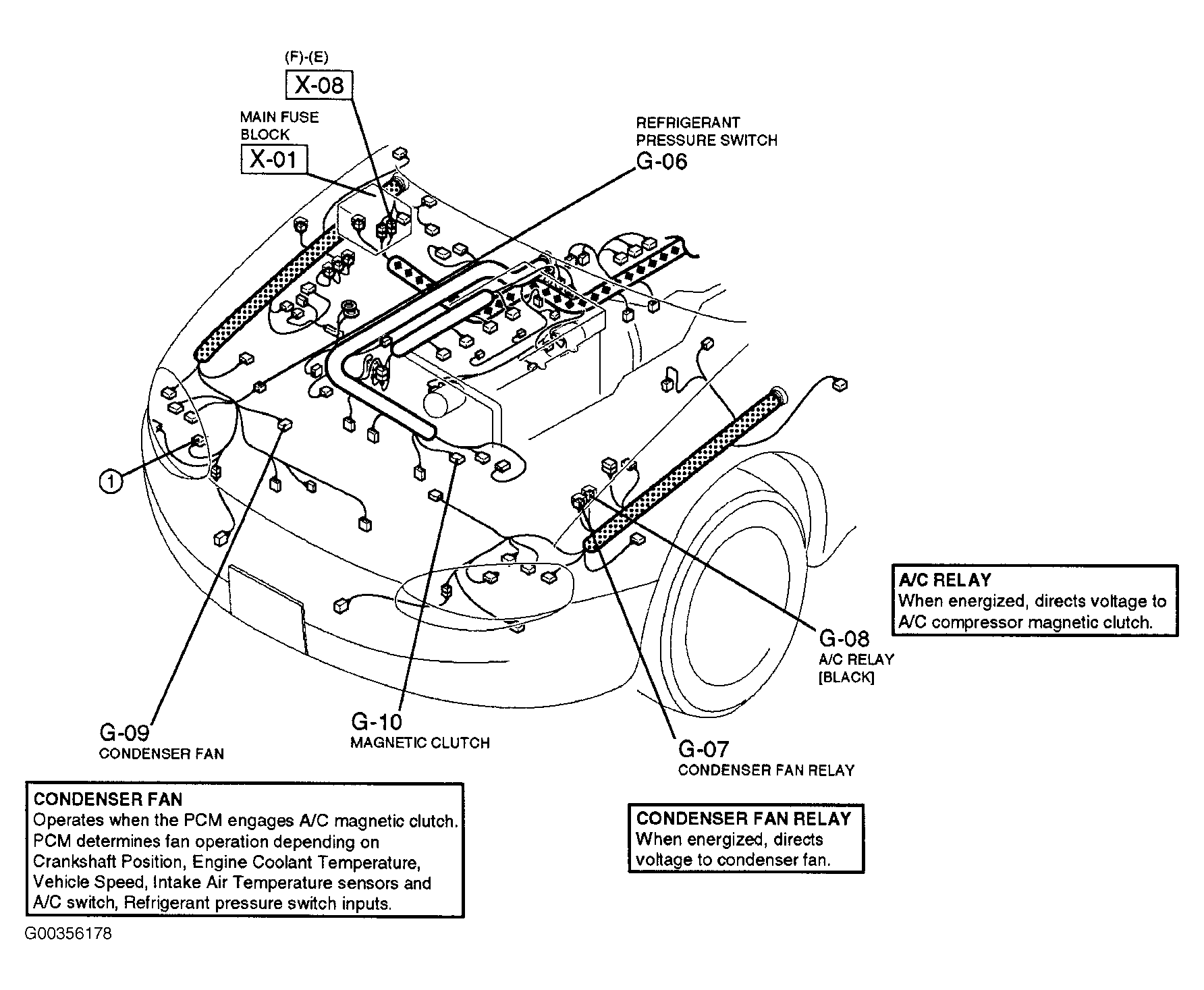

Fig 3: Locating Condenser Fan & Related Component Connectors

Courtesy of MAZDA MOTORS CORP.
