Water Pump Removal/Installation: Notes

1. Remove the air cleaner.
2. Remove the timing belt. See TIMING BELT .
3. Remove in the order indicated in the table. See Fig 1 and Fig 2 .
4. Install in the reverse order of removal.

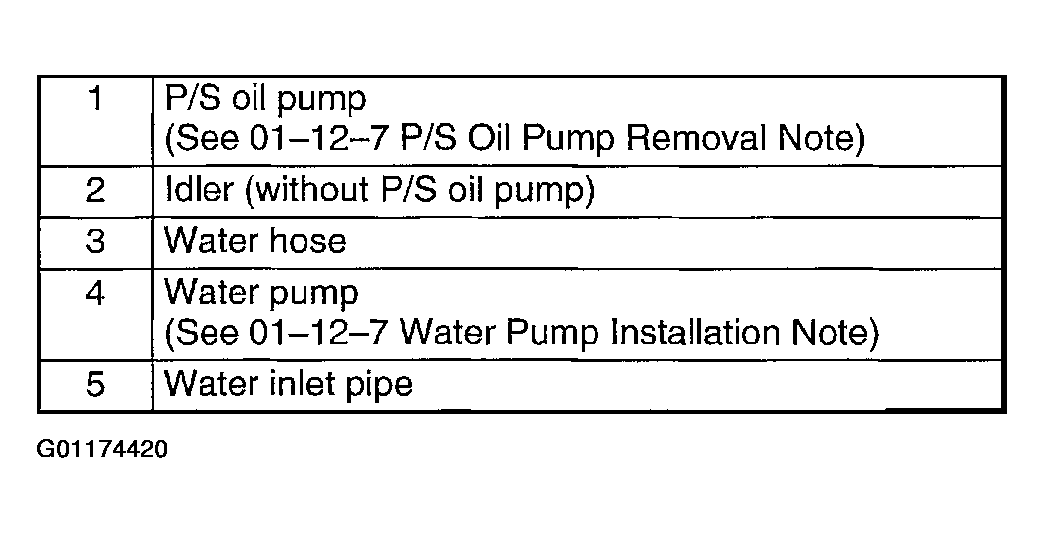

Fig 1: Water Pump Removal Sequence Table

Courtesy of MAZDA MOTORS CORP.

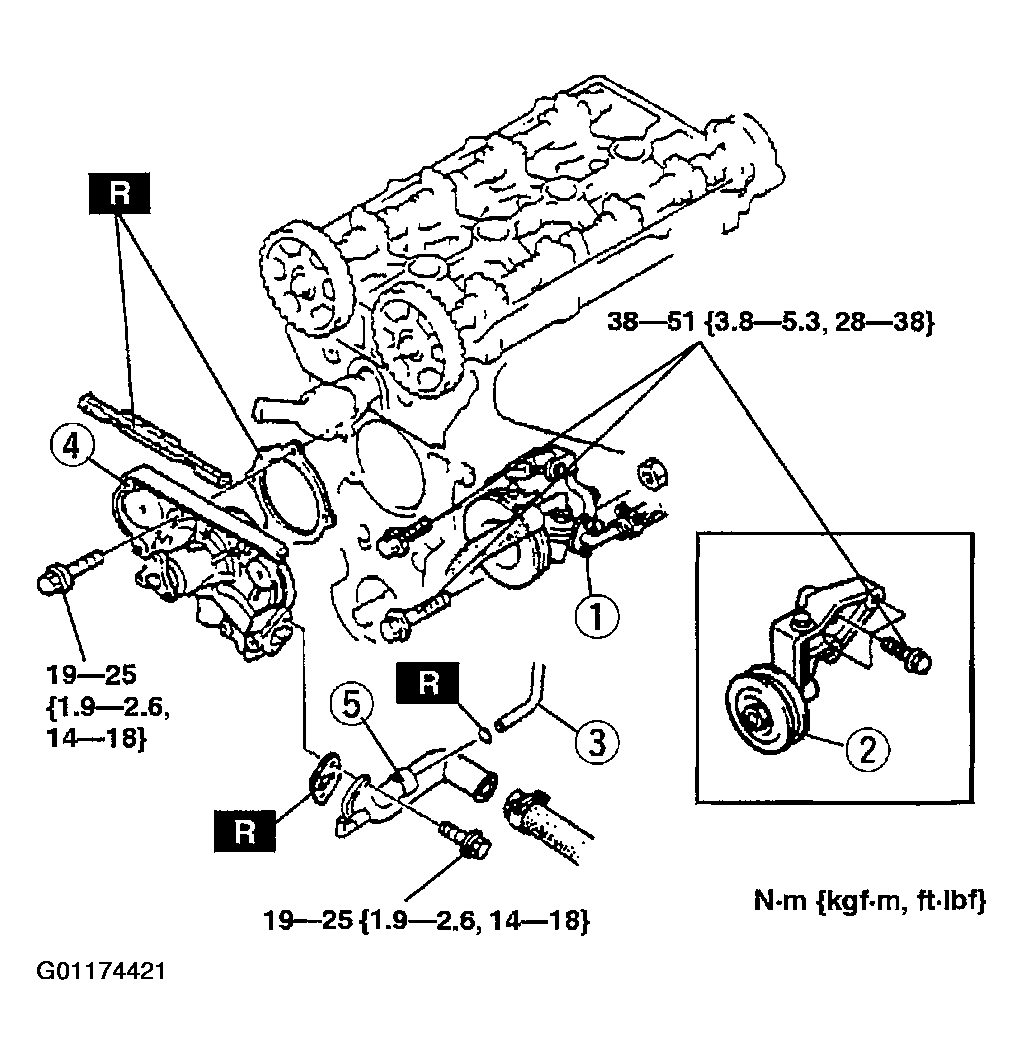

Fig 2: Removing & Installing Water Pump

Courtesy of MAZDA MOTORS CORP.
