Thermostat Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the air hose.
  3. Drain the engine coolant. See ENGINE COOLANT REPLACEMENT  .
  4. Remove in the order indicated in the table.

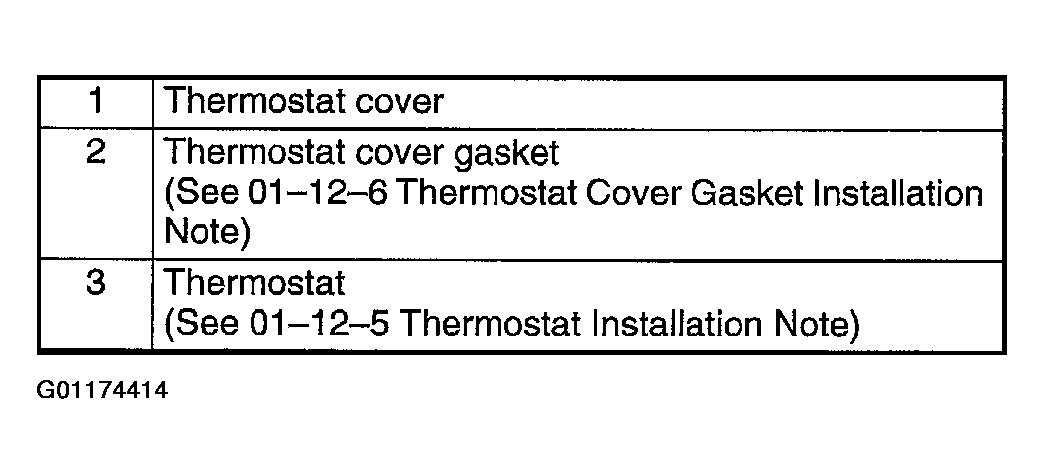

    Fig 1: Thermostat Removal Sequence Table
    G01174414Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.

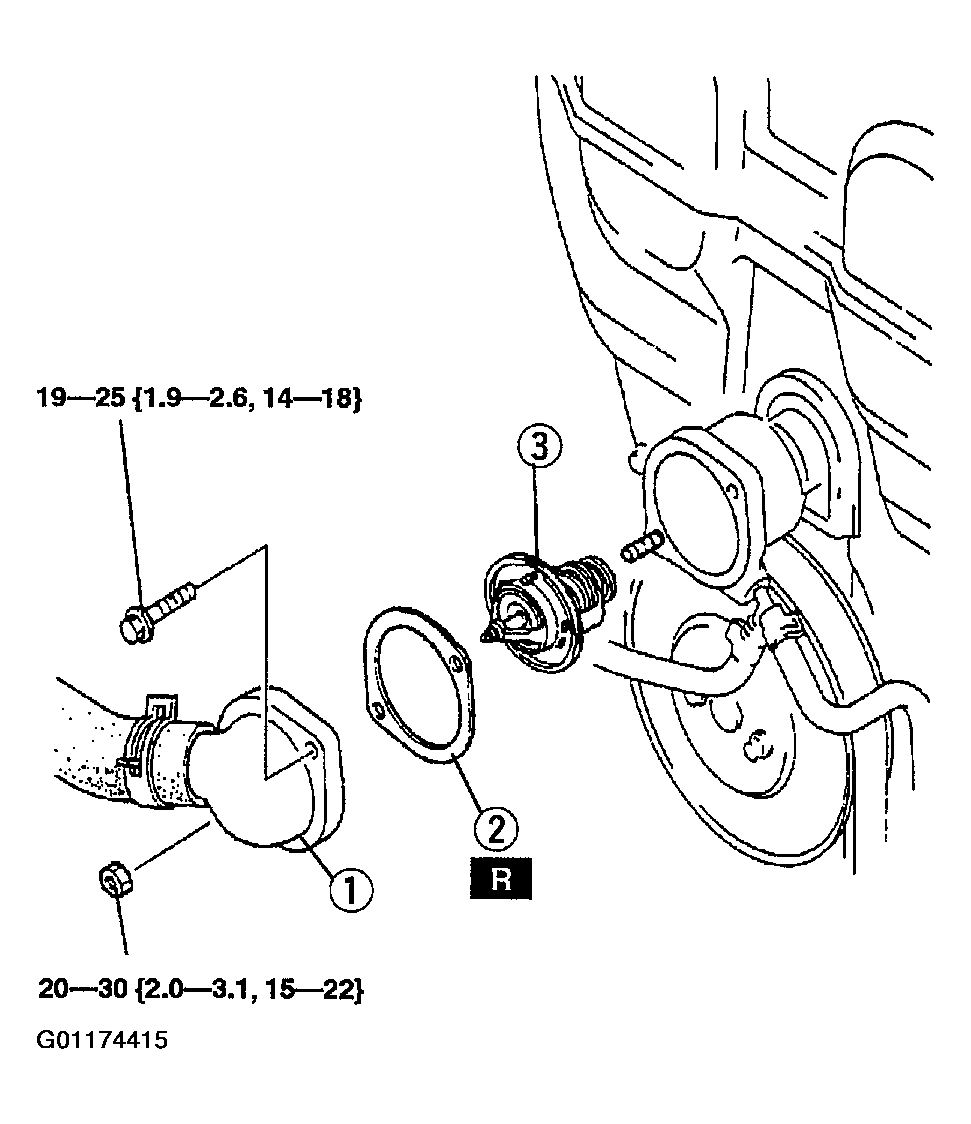

    Fig 2: Removing & Installing Thermostat
    G01174415Courtesy of MAZDA MOTORS CORP.
