Cooling System Location Index

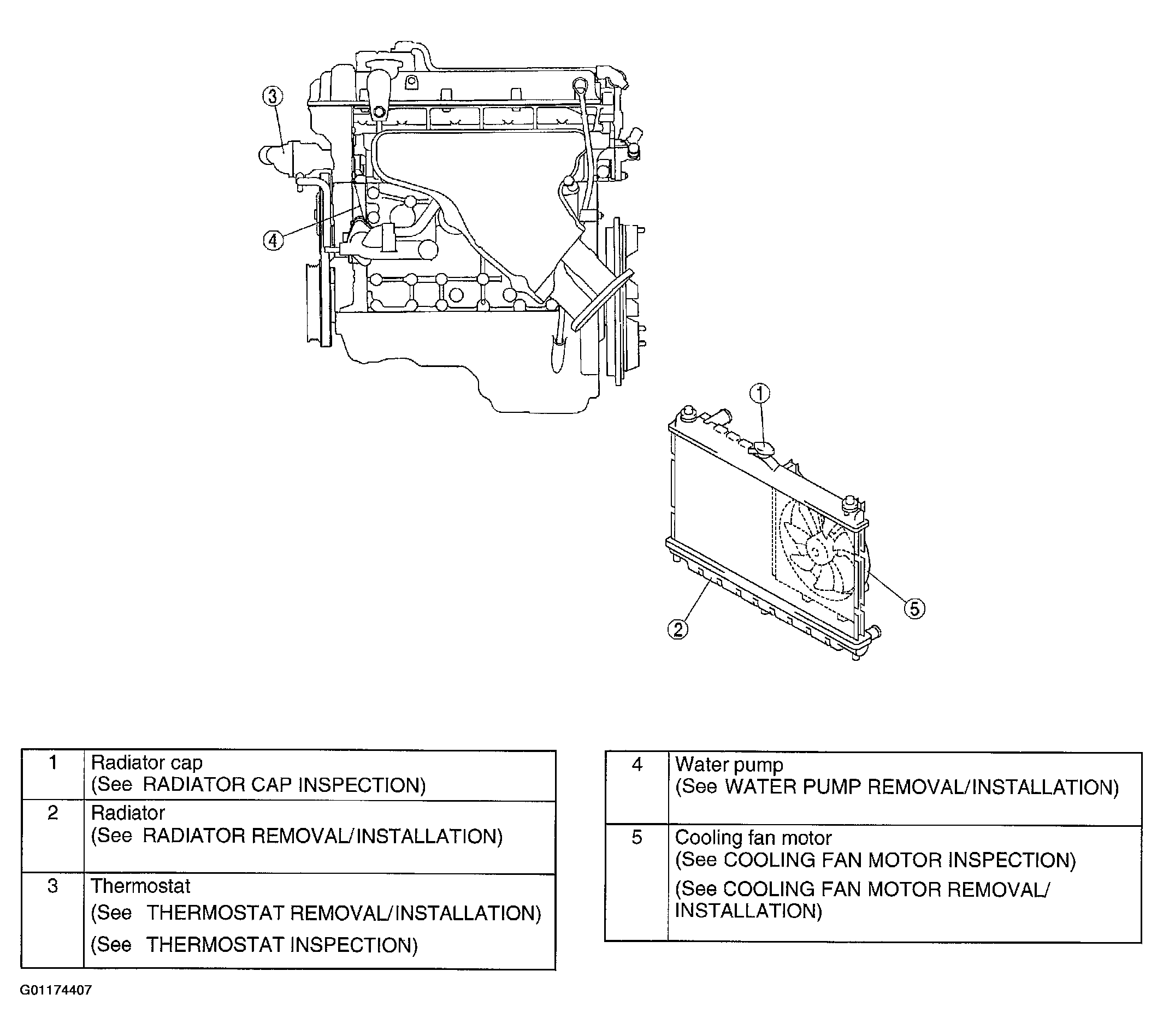

Fig 1: Locating Cooling System Components

G01174407

Courtesy of MAZDA MOTORS CORP.
