Differential Removal/Installation: Notes

1. Drain the differential oil.
2. Remove the crossmember bracket. See CROSSMEMBER BRACKET REMOVAL/INSTALLATION  .
3. Remove the main silencer. See EXHAUST SYSTEM REMOVAL/INSTALLATION .
4. Remove in the order indicated in the table. See Fig 1 .
5. Install in the reverse order of removal.
6. Add the specified oil to the specified level. See DIFFERENTIAL OIL REPLACEMENT  .

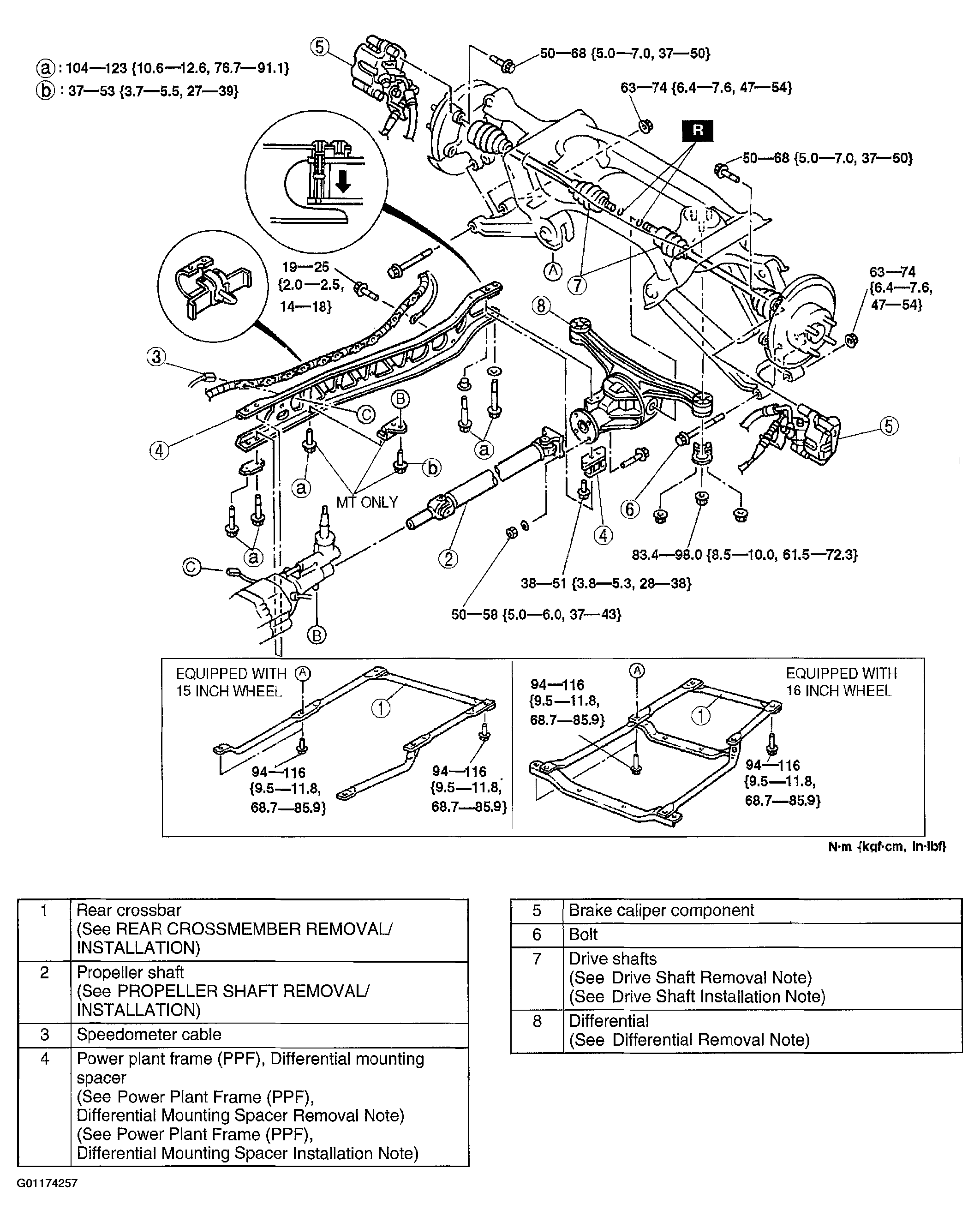

Fig 1: Differential Removal & Installation Sequence Table

Courtesy of MAZDA MOTORS CORP.
