Oil Seal Assembly Note

  1. Apply differential gear oil to the new oil seal lip and install it using the SST  .

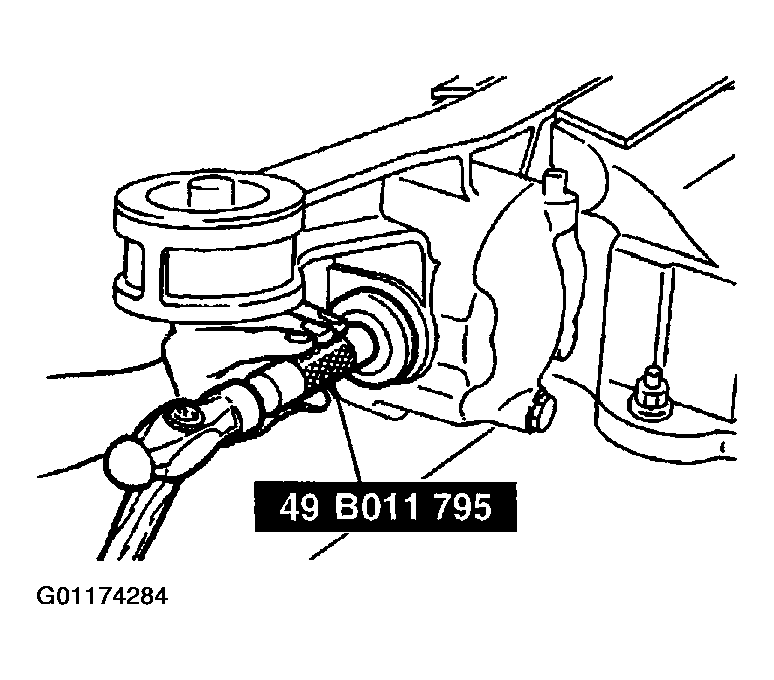

    Fig 1: Installing Oil Seal
    G01174284Courtesy of MAZDA MOTORS CORP.
