Knock Pin (Standard) Disassembly Note

  1. Secure the gear case in a vise and tap out the knock pin toward the ring gear side.

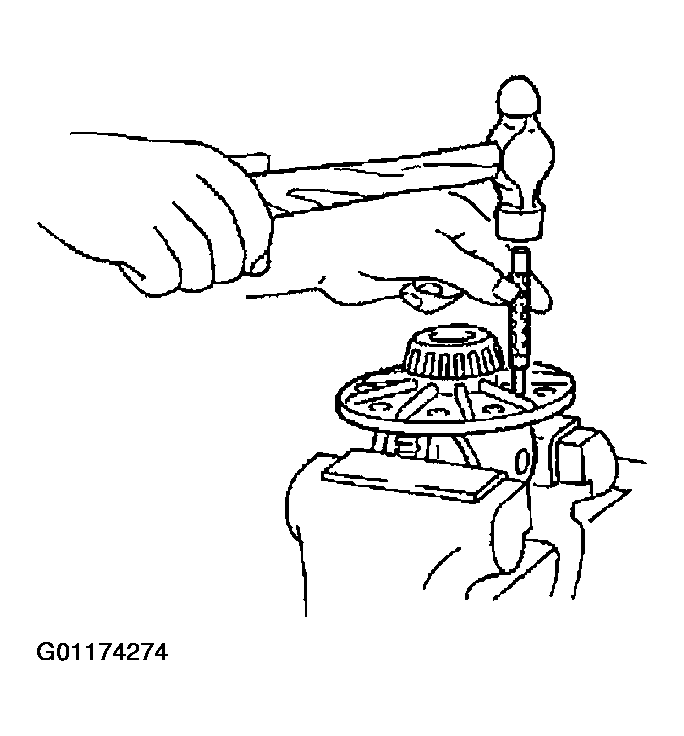

    Fig 1: Securing Gear Case In A Vise & Tapping Out Knock Pin Toward Ring Gear Side
    G01174274Courtesy of MAZDA MOTORS CORP.
