Drive Pinion Disassembly Note

  1. Push out the drive pinion by attaching a miscellaneous locknut to the drive pinion, and tapping it with a copper hammer.

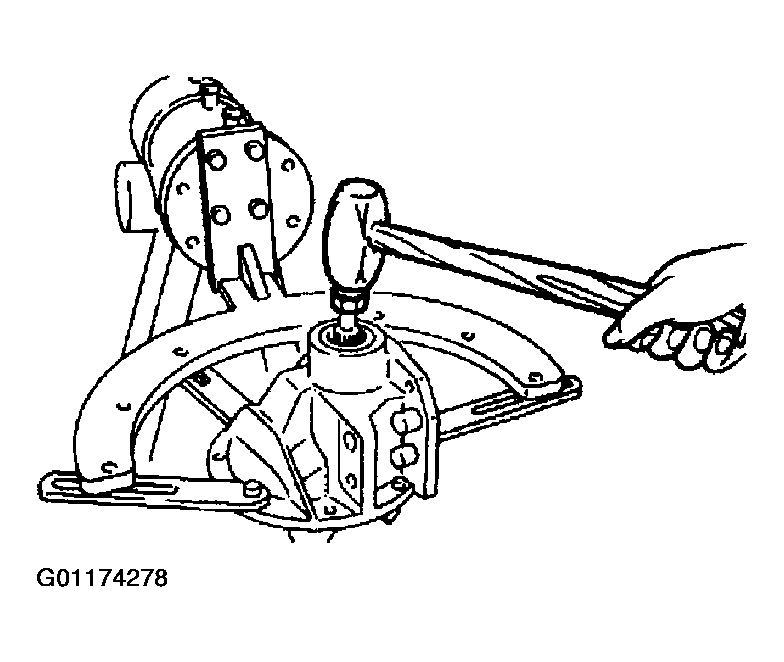

    Fig 1: Pushing Out Drive Pinion
    G01174278Courtesy of MAZDA MOTORS CORP.
