Differential Mount Disassembly Note

  1. Drill holes around the differential mount.

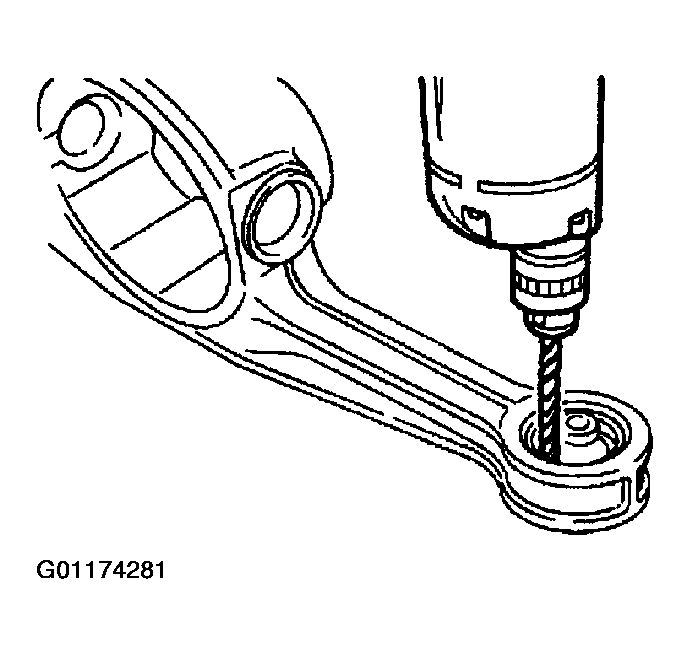

    Fig 1: Drilling Holes Around Differential Mount
    G01174281Courtesy of MAZDA MOTORS CORP.
  2. Hit the edge of the differential mount to remove it.

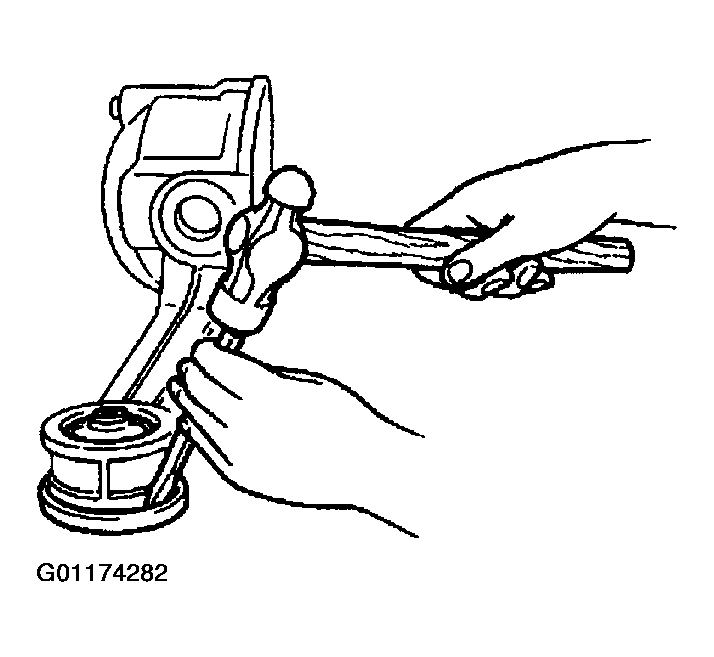

    Fig 2: Hitting Edge Of Differential Mount To Remove It
    G01174282Courtesy of MAZDA MOTORS CORP.
