Differential Mount Assembly Note

  1. Install the new differential mount with the voids facing front and rear.
  2. Press in the differential mount using the SST  .
    1. Press force 19,610 N {2,000 kgf, 4,400 Ibf} max.

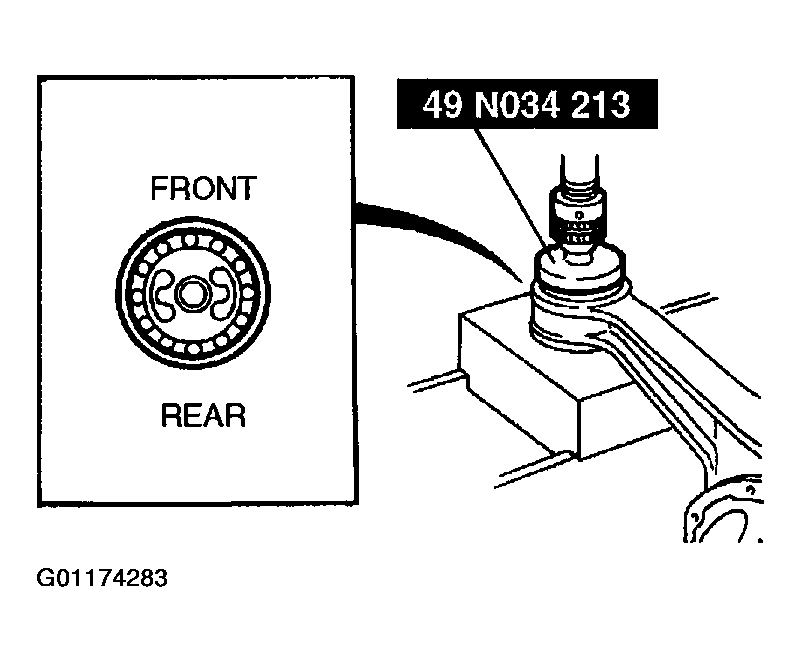

    Fig 1: Assembling Differential Mount
    G01174283Courtesy of MAZDA MOTORS CORP.
