Differential Case Disassembly Note

  1. Strike the differential carrier with a plastic hammer to separate it from the case.
    CAUTION:
    • The differential case is made of aluminum, and is therefore easily dented and scratched by metal tools. When separating the differential carrier from the case, use only a plastic hammer at the point shown in the figure.

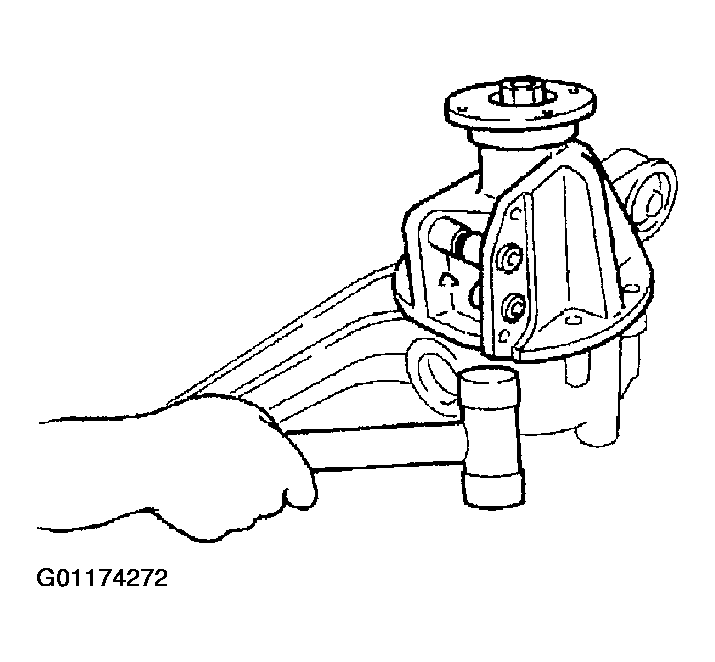

    Fig 1: Striking Differential Carrier With A Plastic Hammer To Separate It From Case
    G01174272Courtesy of MAZDA MOTORS CORP.
