Home
>>
Mazda
>>
2002
>>
MX-5 Miata Base, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Symptom Troubleshooting
>>
Quick Diagnosis Chart
Quick Diagnosis Chart

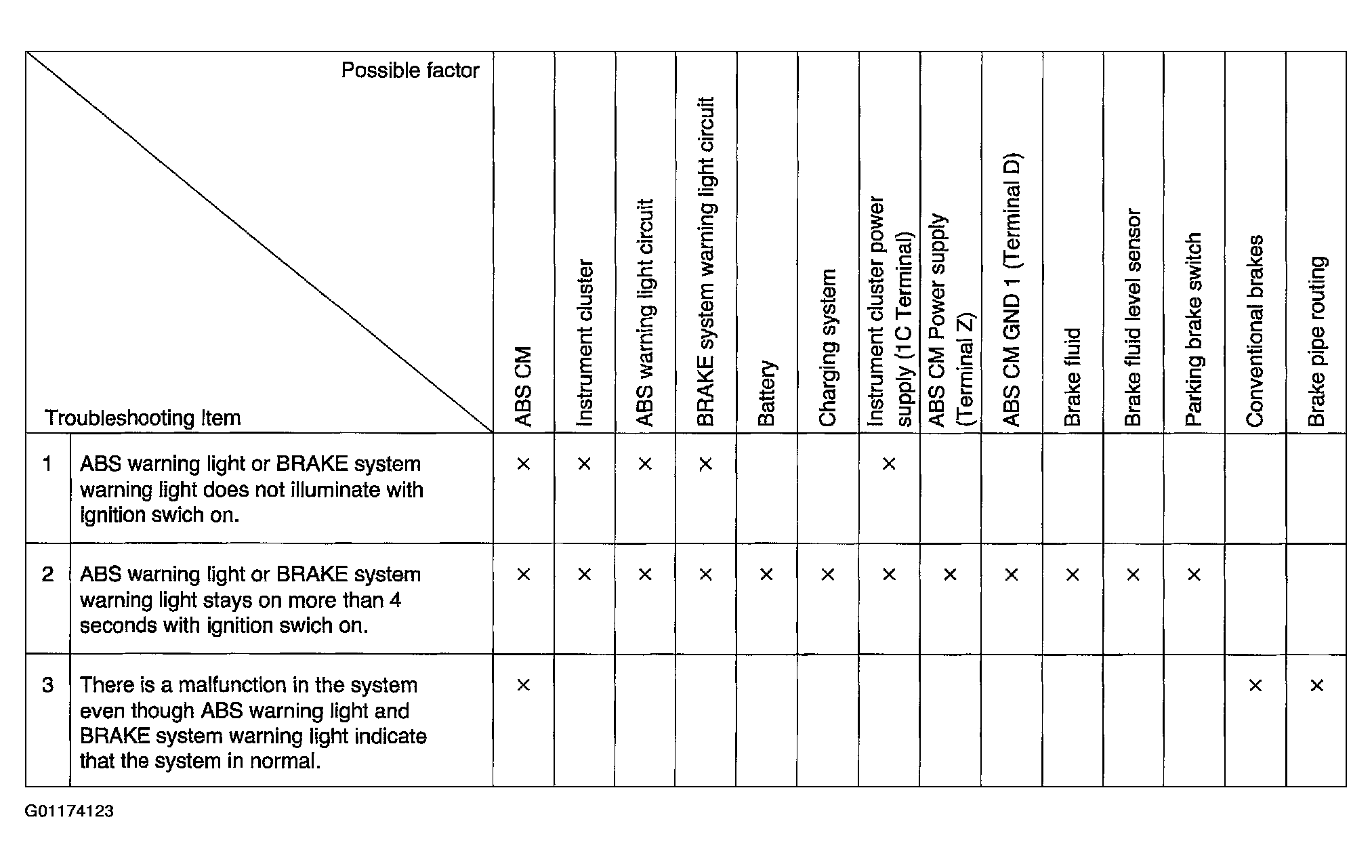

Fig 1: Quick Diagnosis Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
