Home >> Mazda >> 2002 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> DTC B1484 (05): Brake Switch Harness >> Notes

DTC B1484 (05): Brake Switch Harness: Notes

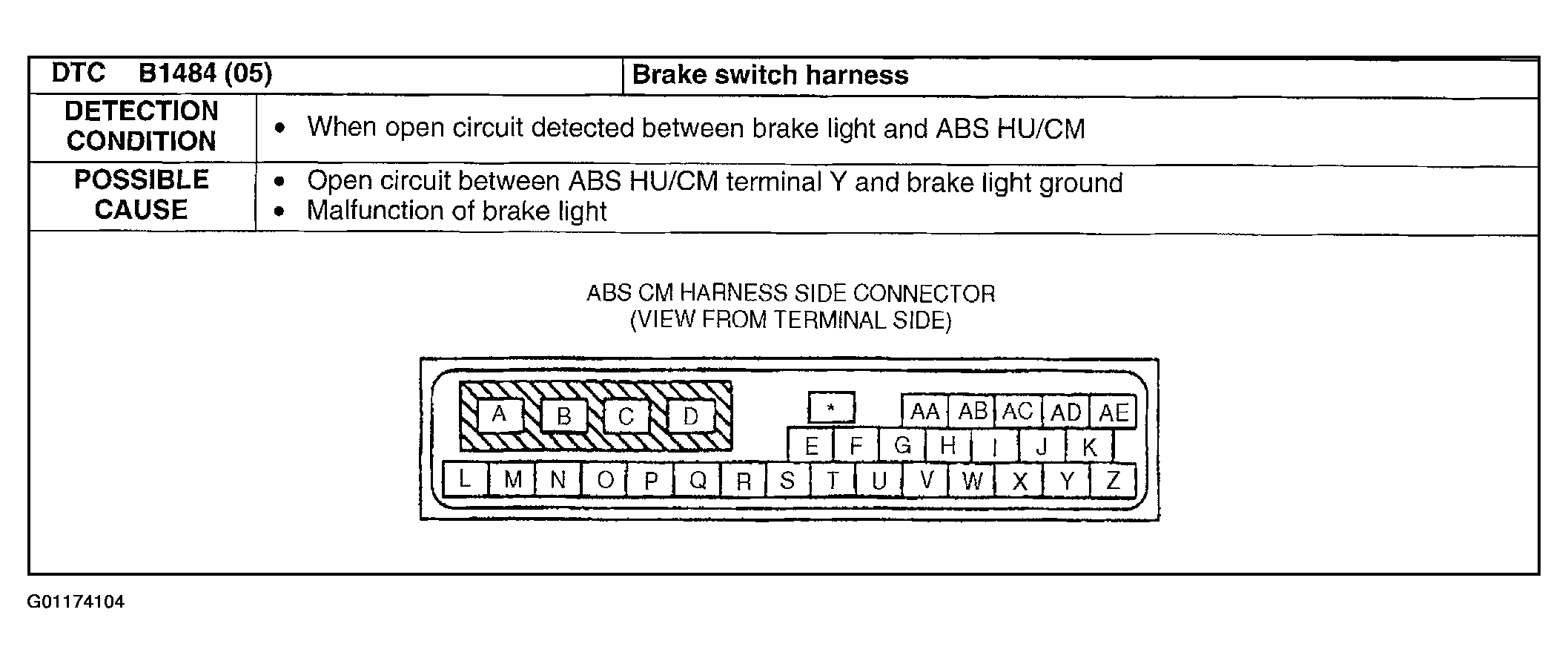

Fig 1: DTC B1484 Detection Condition & Possible Cause

G01174104

Courtesy of MAZDA MOTORS CORP.
