Trunk Lid Lock Actuator Inspection

  1. Disconnect the negative battery cable.
  2. Disconnect trunk lid lock actuator.
  3. Apply battery positive voltage to the trunk lid lock actuator terminals and inspect the operation of the trunk lid lock actuator.
    • If not as specified, replace the trunk lid lock.

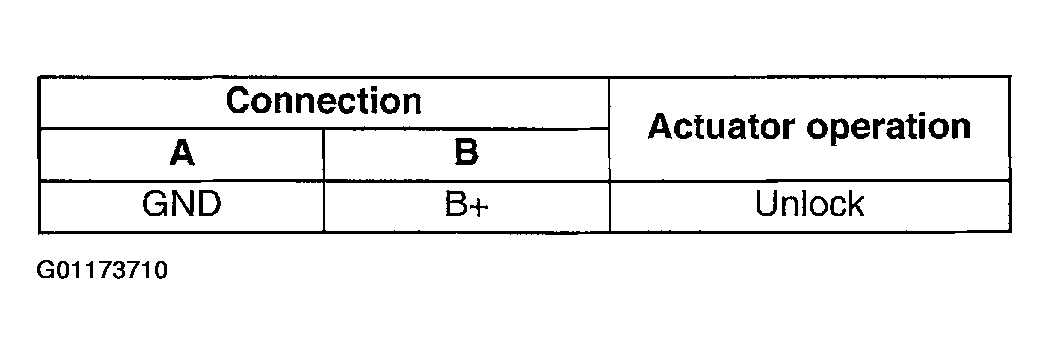

    Fig 1: Inspecting Trunk Lid Lock Actuator (1 Of 2)
    G01173710Courtesy of MAZDA MOTORS CORP.

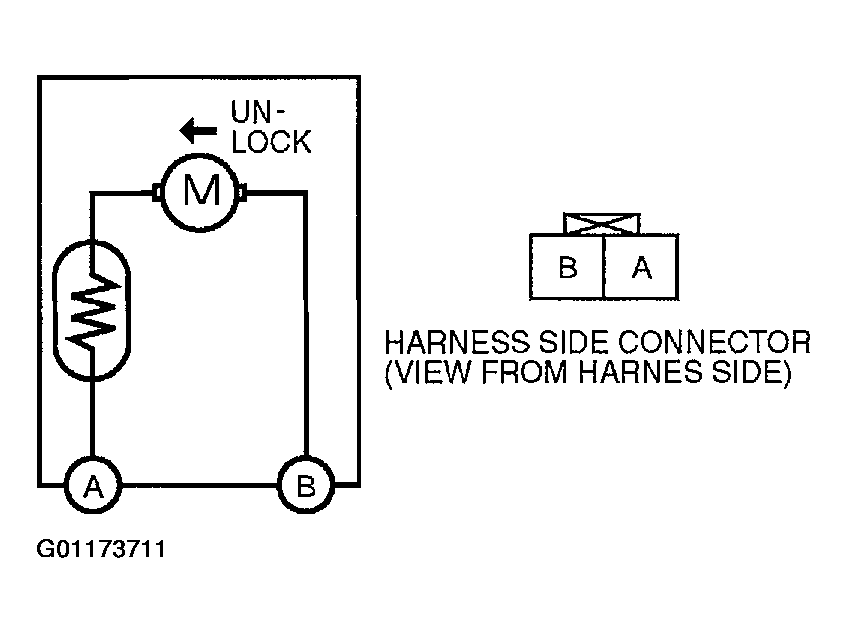

    Fig 2: Inspecting Trunk Lid Lock Actuator (2 Of 2)
    G01173711Courtesy of MAZDA MOTORS CORP.
