Hood Lock And Opener Removal/Installation

  1. Remove the upper shroud panel.
  2. Remove in the order indicated. See Fig 1 .
  3. Install in the reverse order of removal.
  4. Adjust the hood. See HOOD ADJUSTMENT  .

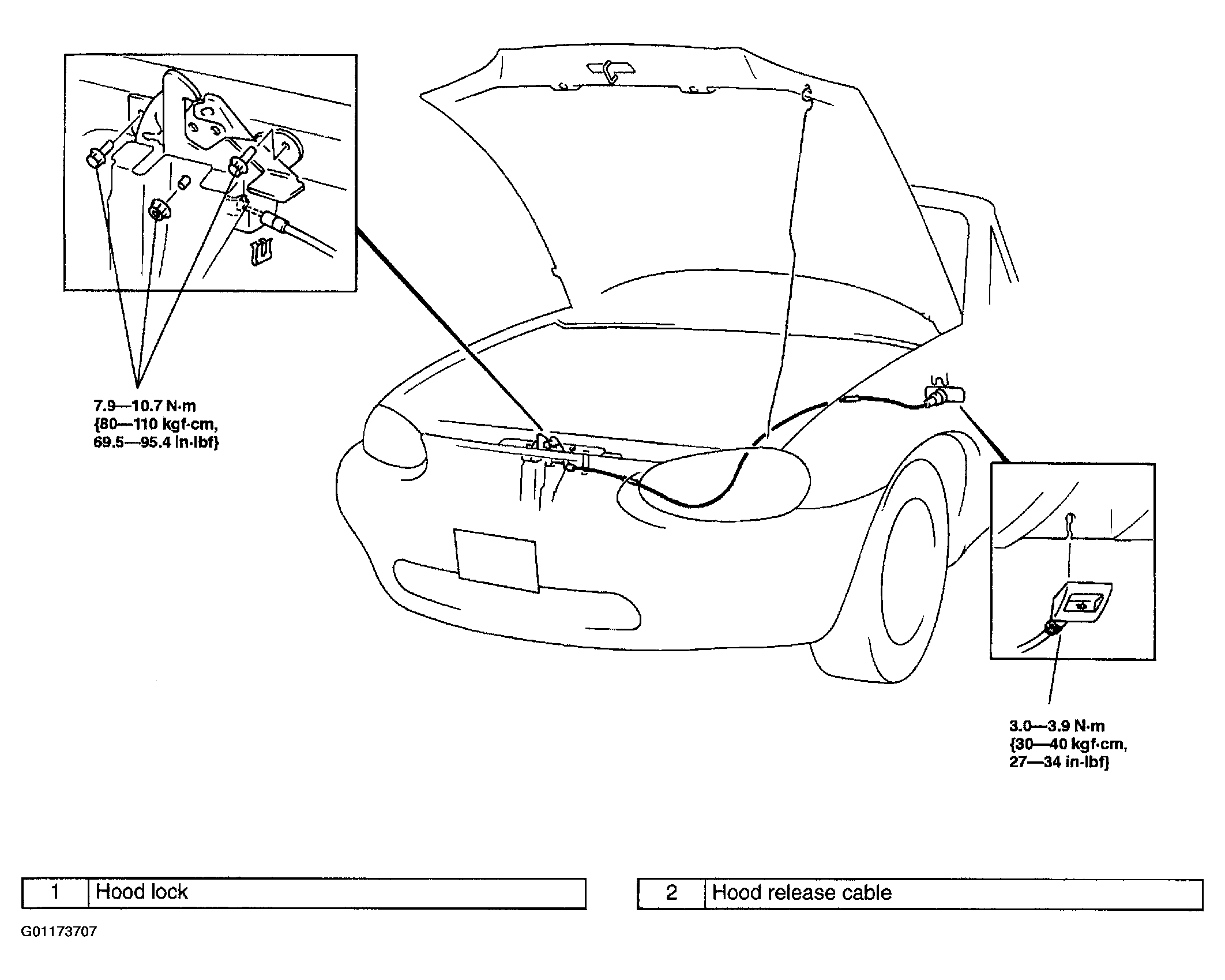

    Fig 1: Removing & Installing Hood Lock & Opener
    G01173707Courtesy of MAZDA MOTORS CORP.
