Door Lock And Opener Removal/Installation

  1. Close the door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the door trim.
  4. To remove the door lock, remove the rear glass guide.
  5. Remove in the order indicated in the table.

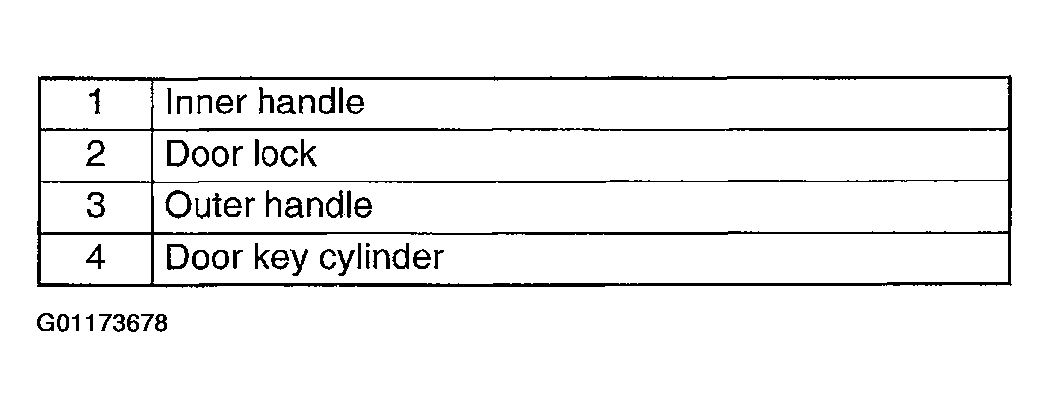

    Fig 1: Door Lock & Opener Removal Order Table
    G01173678Courtesy of MAZDA MOTORS CORP.

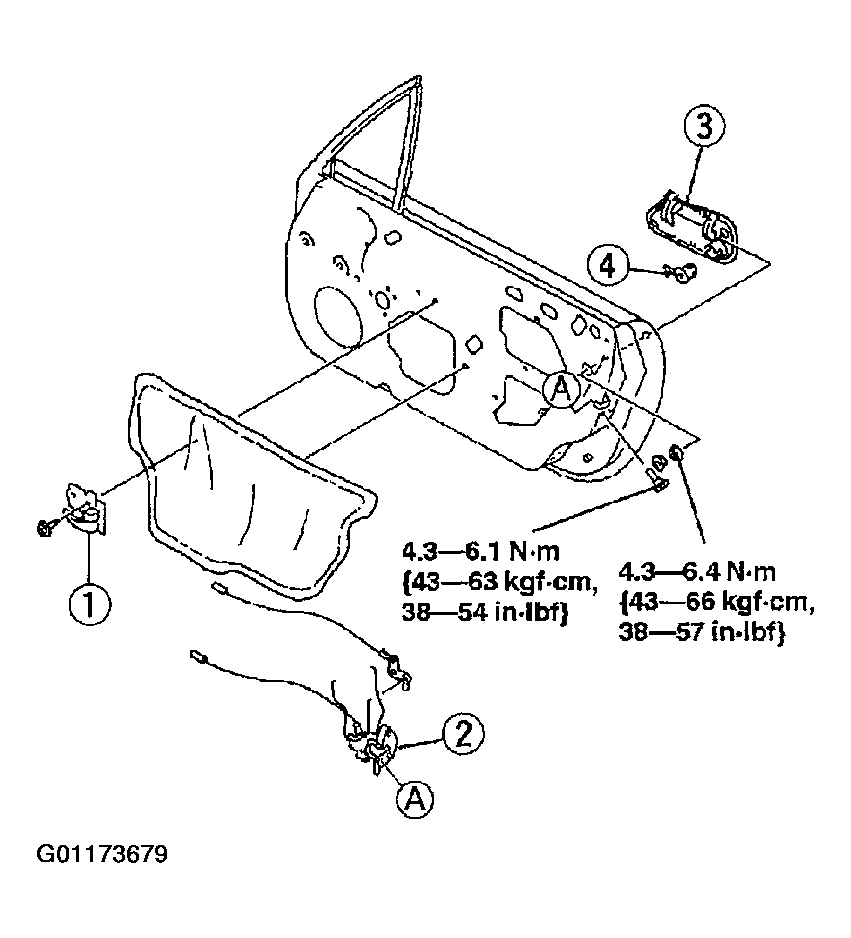

    Fig 2: Identifying Door Lock & Opener Components
    G01173679Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
