Camber Adjustment

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the fixing nut of the adjusting cam bolt (rear lateral link (lower)).

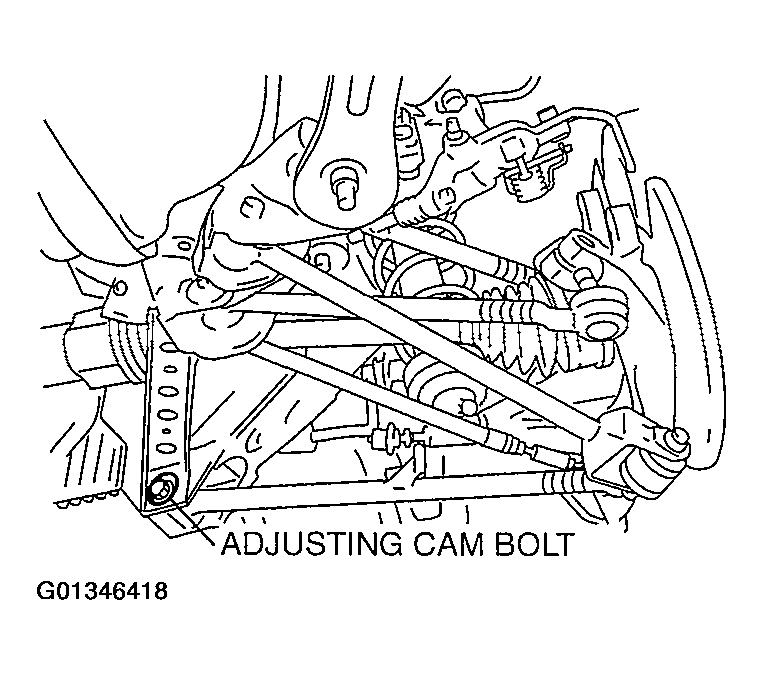

Fig 1: Locating Rear Wheel Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.
Rotate the adjusting cam bolt in either direction to adjust the camber.

Fig 2: Rotating Direction Of Rear Wheel Cam Bolt
Courtesy of MAZDA MOTORS CORP.

Standard Suspension

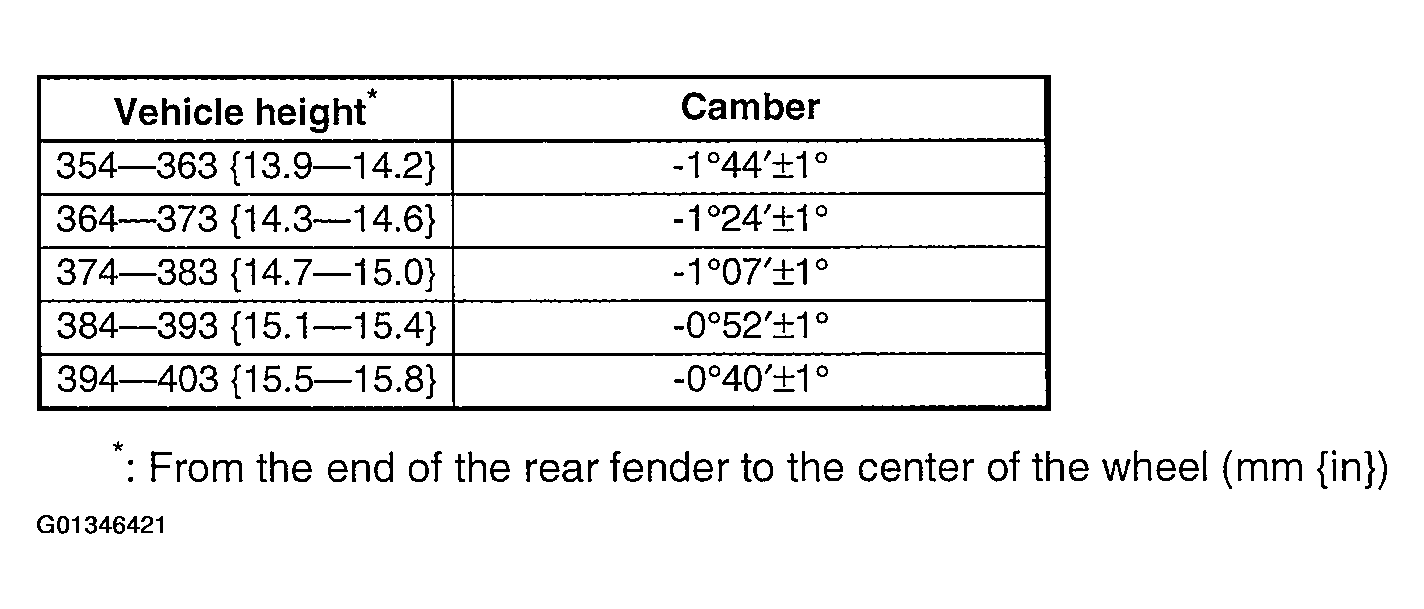

Fig 3: Standard Suspension Specification (Rear Wheel)
Courtesy of MAZDA MOTORS CORP.

Sport Suspension

Fig 4: Sport Suspension Camber (Rear Wheel)
Courtesy of MAZDA MOTORS CORP.

Fig 5: Left & Right Rear Wheel Adjustment
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Refer to the figure for the adjusting angle per one graduation.
Tighten the nut
Tightening Torque

117.7-137.3 N.m {12.1-14.0 kgf.m, 86.9-101.2 ft.lb}

Fig 6: Locating Front Wheel Cam Bolt Adjusting Scale & Rear Wheel Caster

Courtesy of MAZDA MOTORS CORP.
