Timing Chain Component (RH) Removal Note

  1. Verify that mark on each sprocket is in the TDC position as shown.

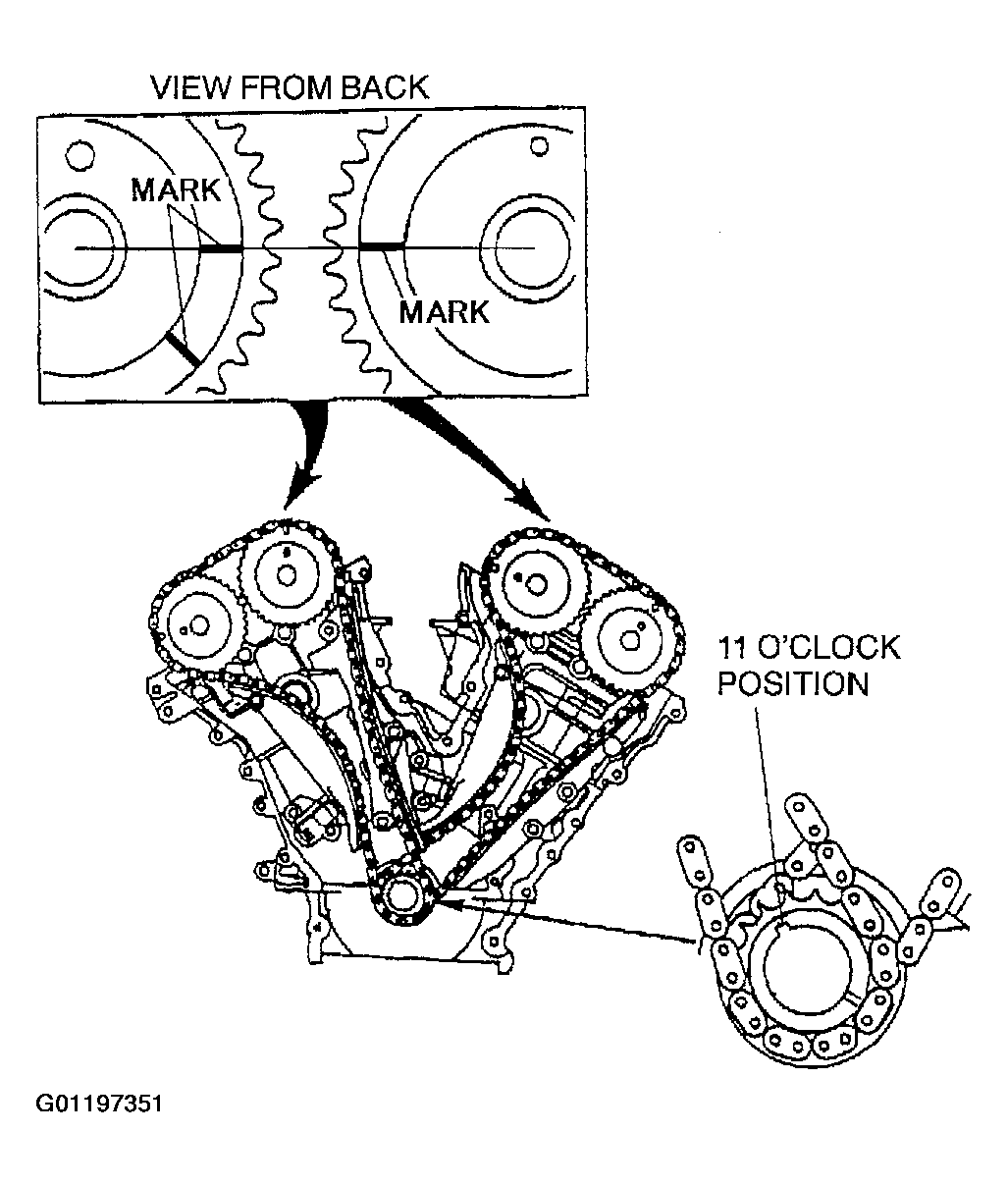

    Fig 1: Aligning Timing Mark
    G01197351Courtesy of MAZDA MOTORS CORP.
    2. CAUTION:
    • Do not rotate the crankshaft counterclockwise. The timing chains may bind, causing engine damage.

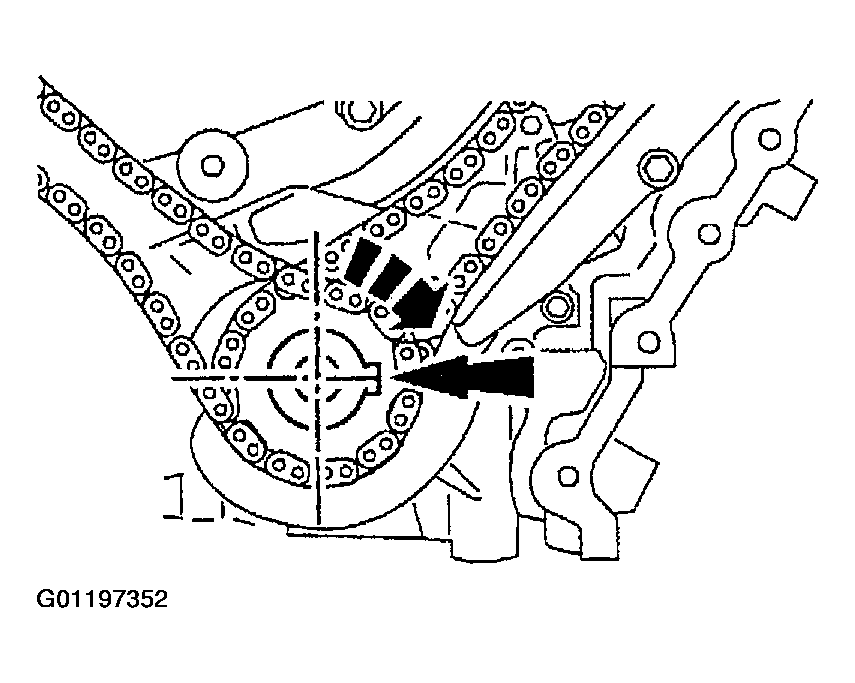

    Fig 2: Crankshaft Keyway In 3 O'Clock Position
    G01197352Courtesy of MAZDA MOTORS CORP.
  2. Turn the crankshaft clockwise so that the crankshaft keyway is in the 3 o'clock position. (The camshafts (RH) are in the neutral position.)
  3. Remove the timing chain (RH) in the following order.
    1. Chain tensioner
    2. Tensioner arm
    3. Timing chain
    4. Chain guide

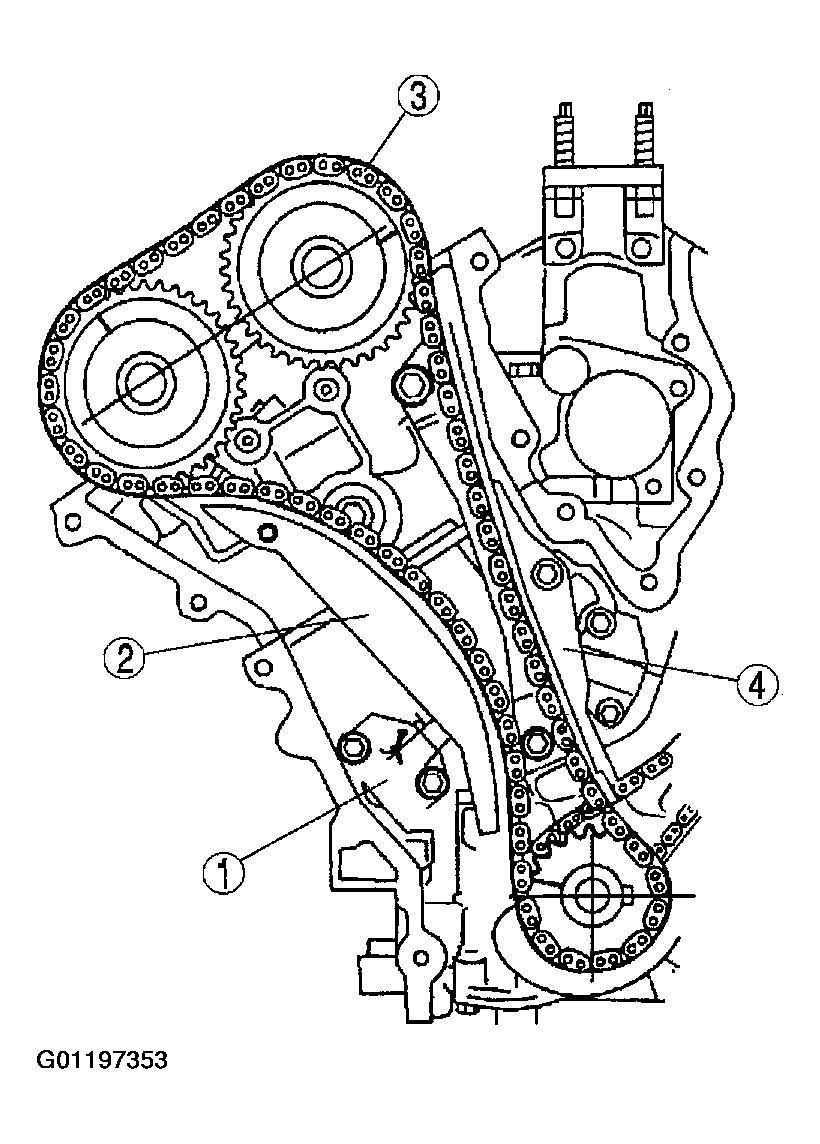

    Fig 3: Removing Timing Chain (RH)
    G01197353Courtesy of MAZDA MOTORS CORP.
