Front Oil Seal Installation Note

  1. Assemble the front oil seal using part A of the SST (303-335)  and the SST (49 UN01 002)  .

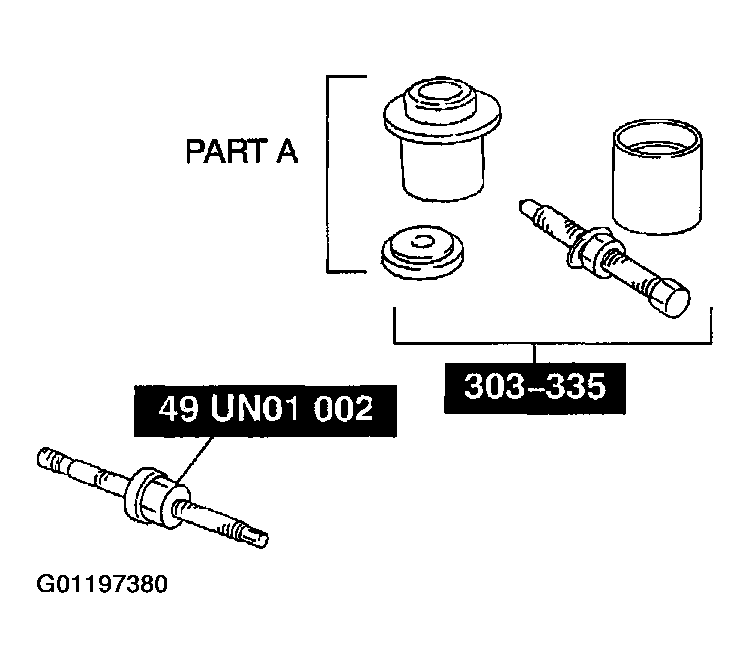

    Fig 1: Identifying SST Components
    G01197380Courtesy of MAZDA MOTORS CORP.
  2. Apply clean engine oil to the oil seal.
  3. Push the oil seal slightly in by hand.
  4. Compress the oil seal using the SSTs  .

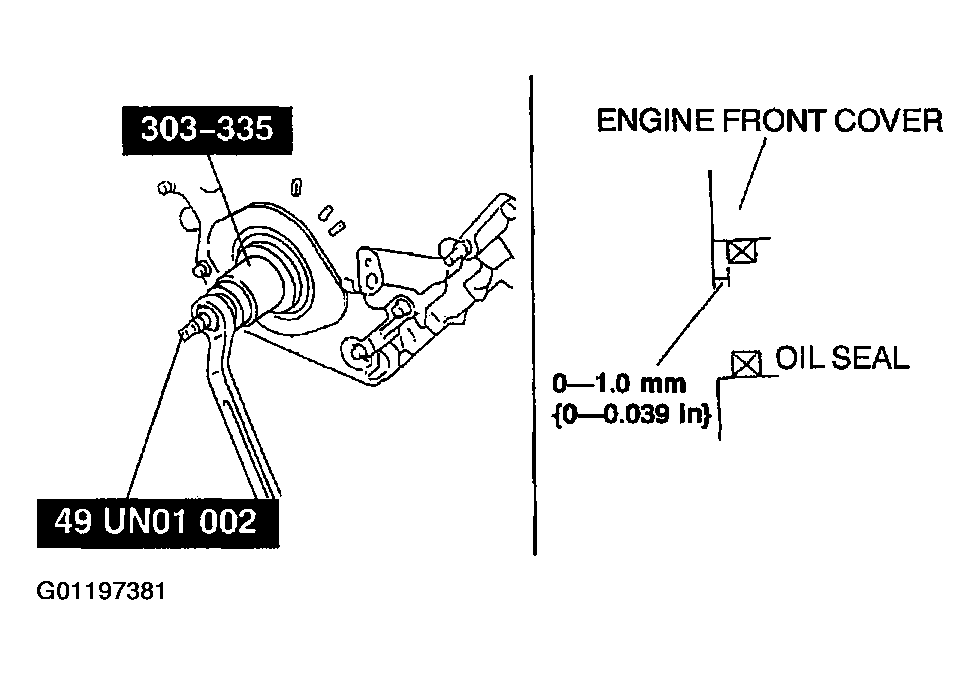

    Fig 2: Compressing/Installing Oil Seal
    G01197381Courtesy of MAZDA MOTORS CORP.
