Second-Row Seat Removal

  1. Place the buckle in the pocket in the cushion.
  2. Slide the seat to the rearmost position.
  3. Pull the recliner lever and lower the seat back forward.
  4. Lift and hold the seat-anchor bar and lift the entire seat up and forward.
    Fig 1: Identifying Seat-Anchor Bar
    G01196427Courtesy of MAZDA MOTORS CORP.
  5. Remove the second-row seat.

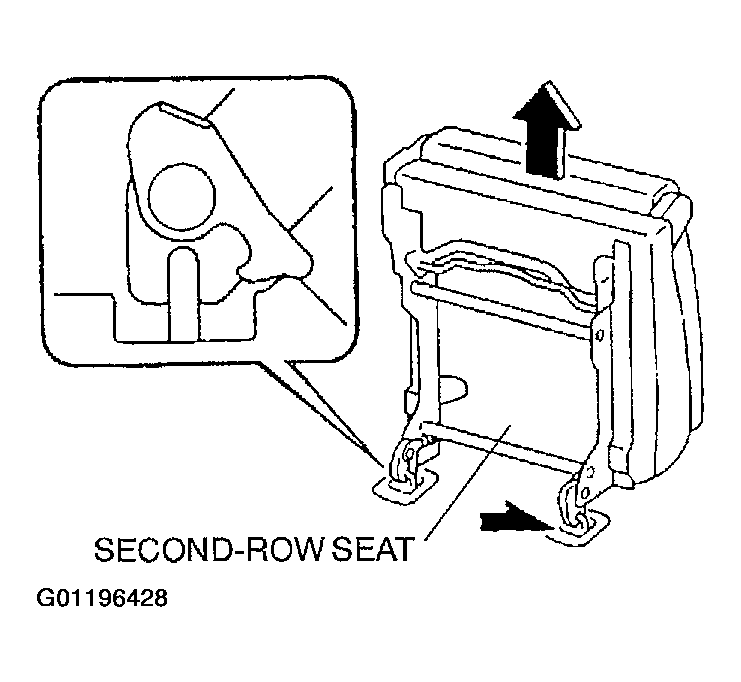

    Fig 2: Removing Second-Row Seat
    G01196428Courtesy of MAZDA MOTORS CORP.
