Symptom Diagnosis: Notes

NOTE: For additional information to assist trouble shooting of transaxle malfunctions, see Fig 1 and Fig 2 .

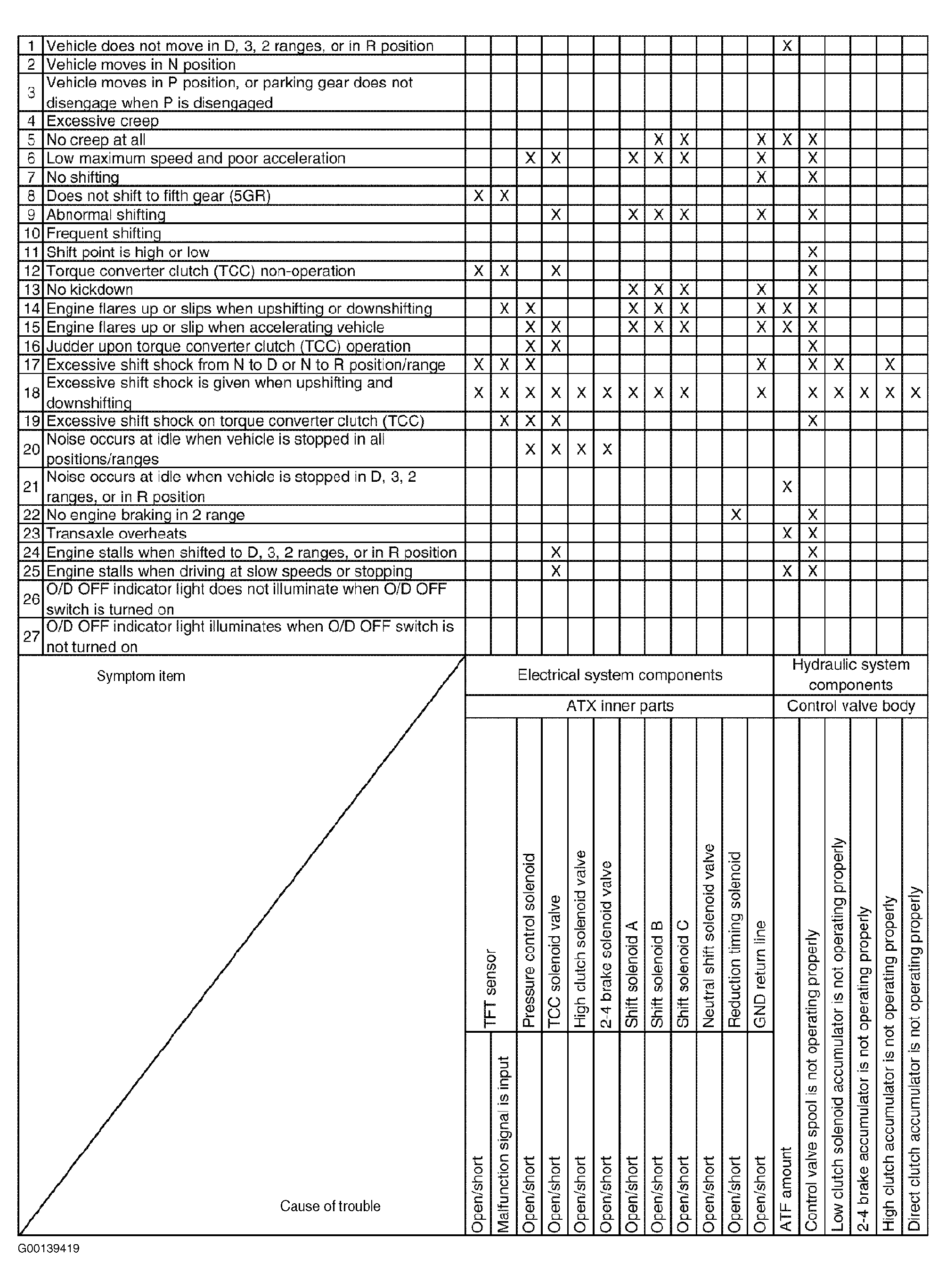

Fig 1: JA5A-EL Electronic Trouble Shooting Chart (1 Of 2)
G00139419Courtesy of MAZDA MOTORS CORP.

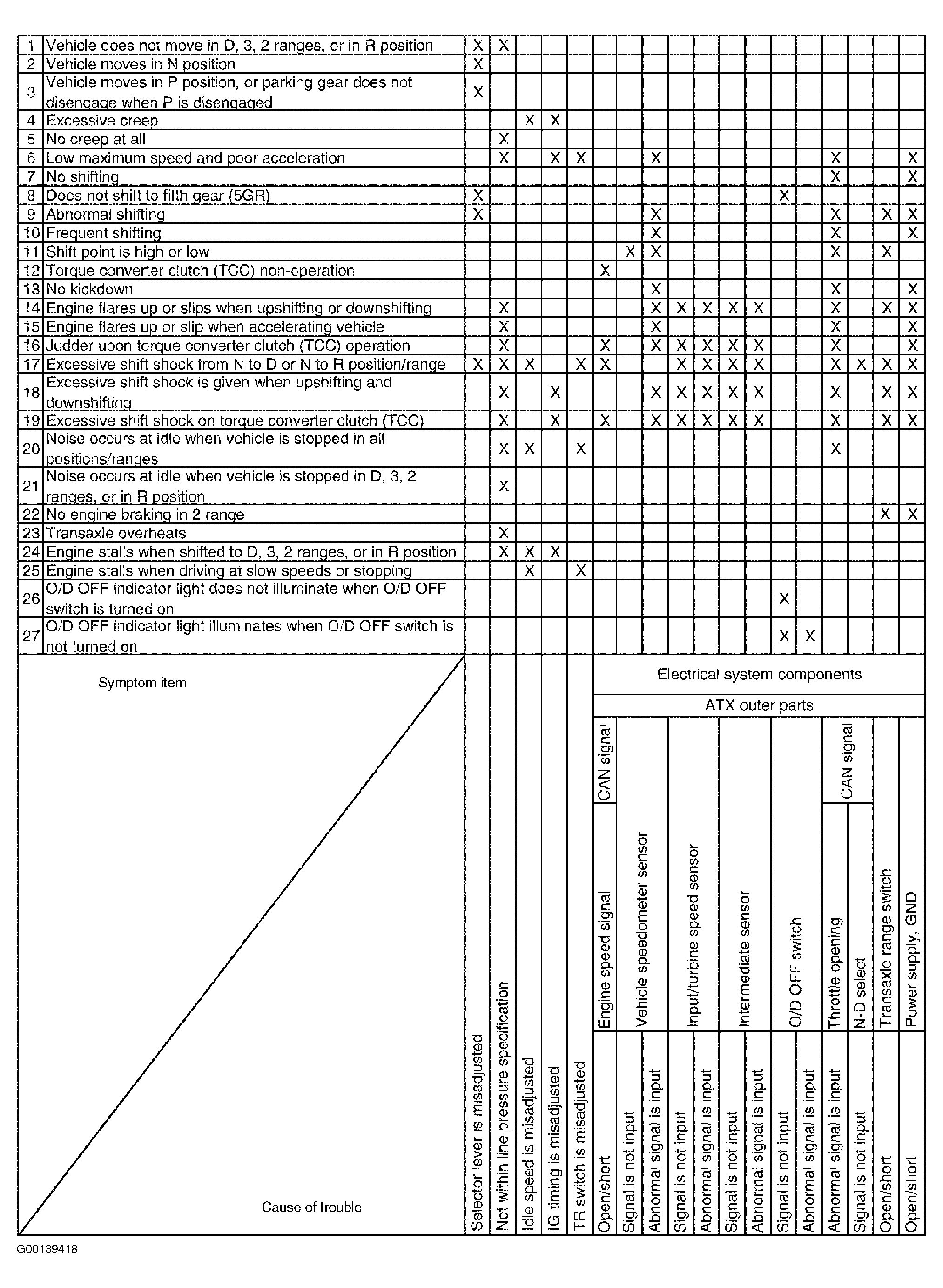

Fig 2: JA5A-EL Electronic Trouble Shooting Chart (2 Of 2)
G00139418Courtesy of MAZDA MOTORS CORP.
