Fail-Safe Mode

TCM has a fail-safe mode where minimum vehicle driveability is obtained by changing TCM signals to preset values and limiting TCM control. Changes to transaxle function are listed by DTC. See Fig 1-Fig 3 . For more information on DTCs, see SELF-DIAGNOSTIC SYSTEM .

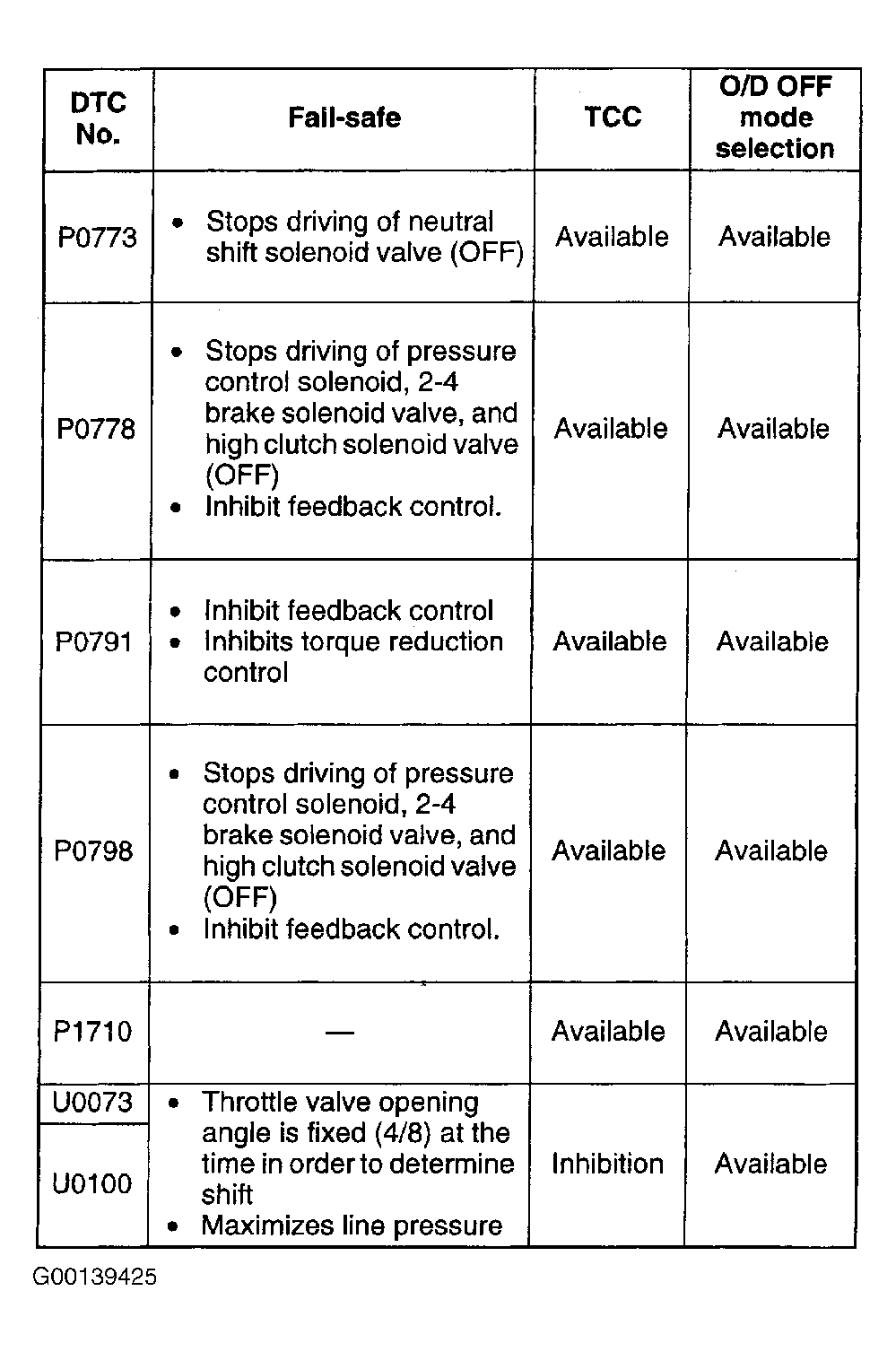

Fig 1: Fail-Safe Description Table (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

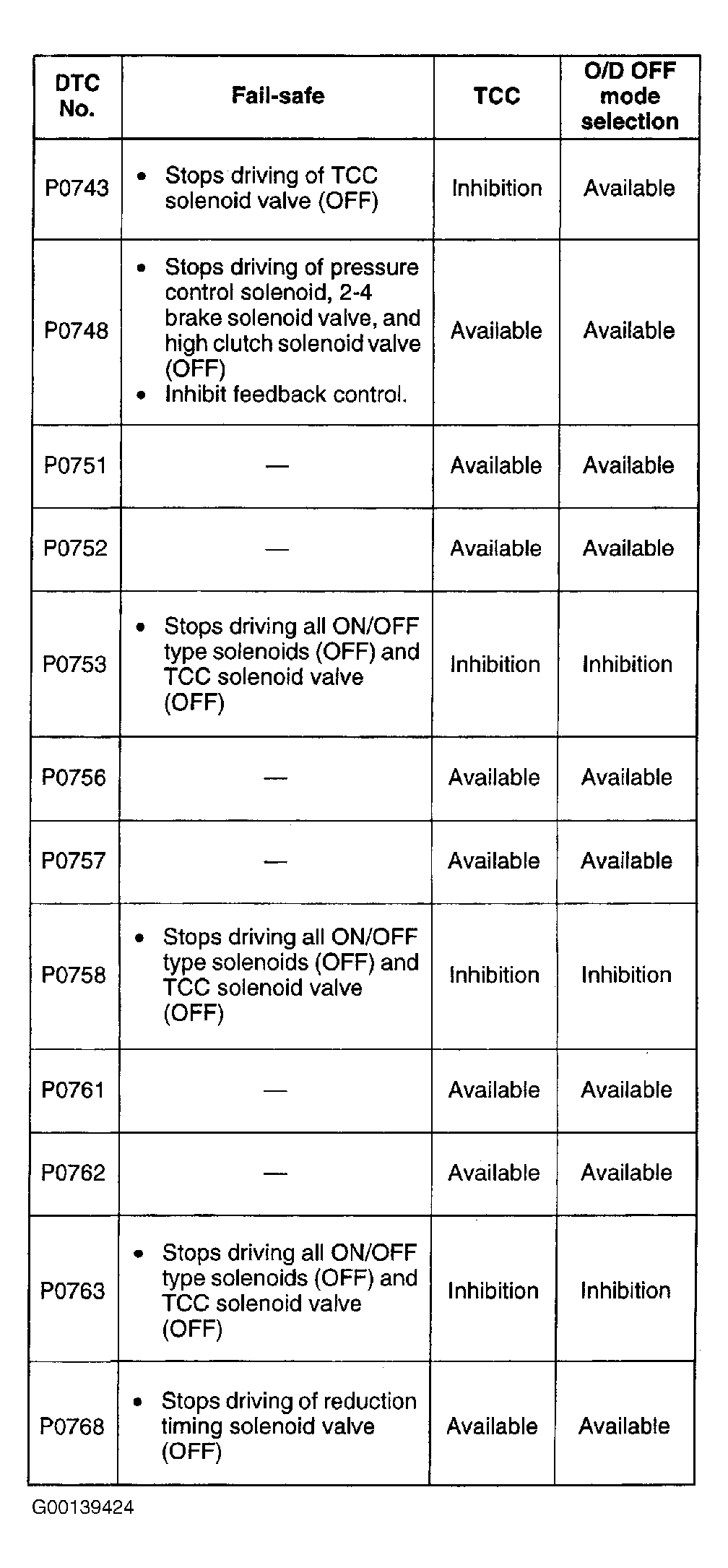

Fig 2: Fail-Safe Description Table (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

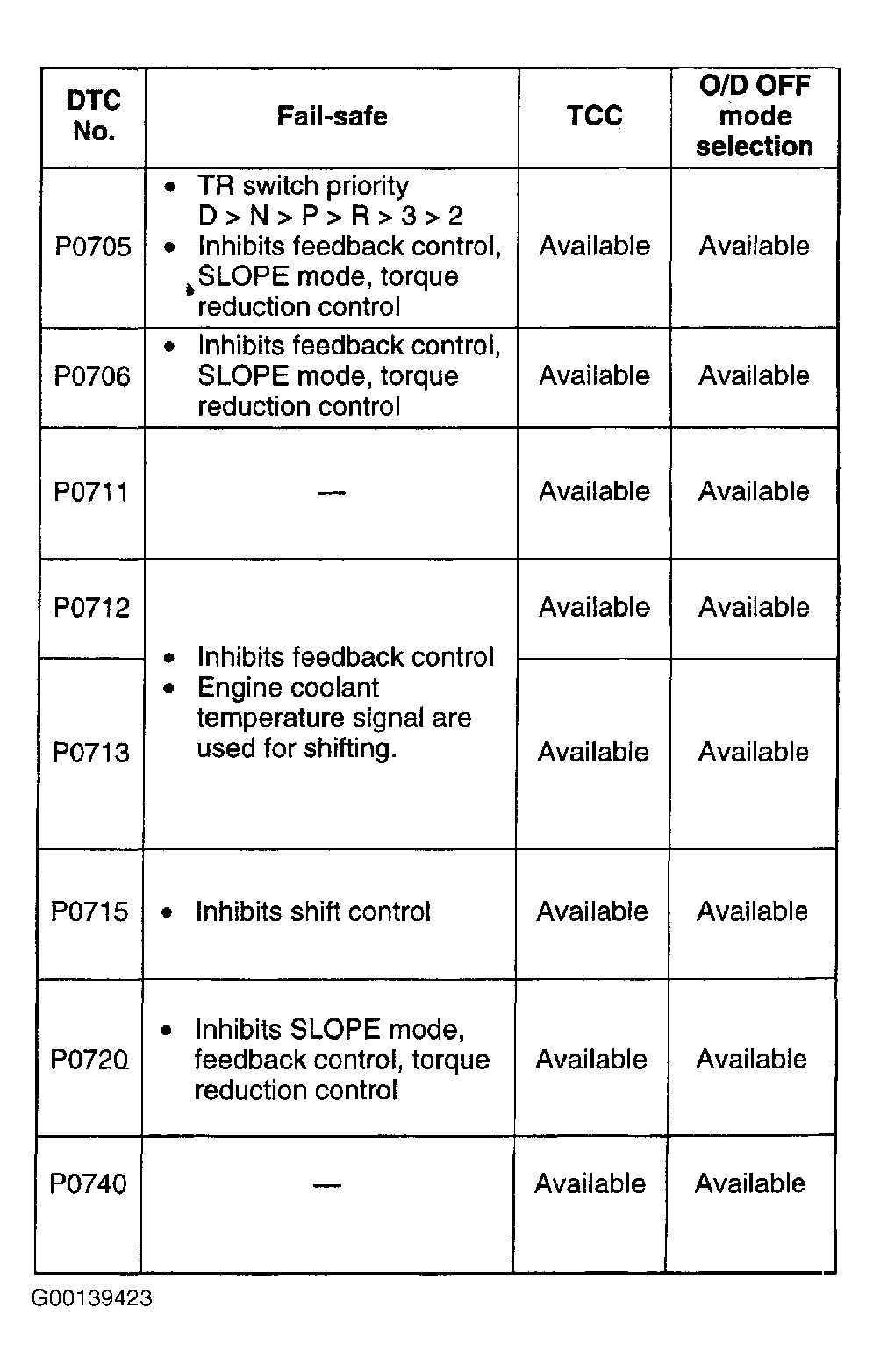

Fig 3: Fail-Safe Description Table (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
