Oil Seal Assembly Note

  1. Assemble the oil seal in the transaxle case using the SSTs  .

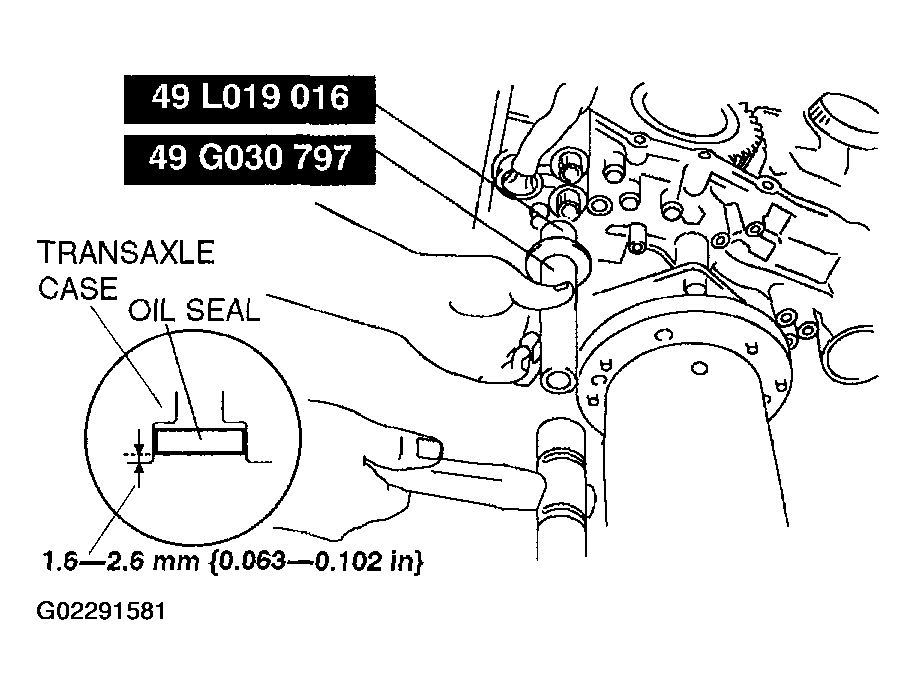

    Fig 1: Installing Oil Seal In Transaxle Case
    G02291581Courtesy of MAZDA MOTORS CORP.
