Output Gear Bearing Preload

  1. Install the output gear component into the transaxle case. See AUTOMATIC TRANSAXLE ASSEMBLY .
  2. Set the SST  on the output gear component as shown in the figure.

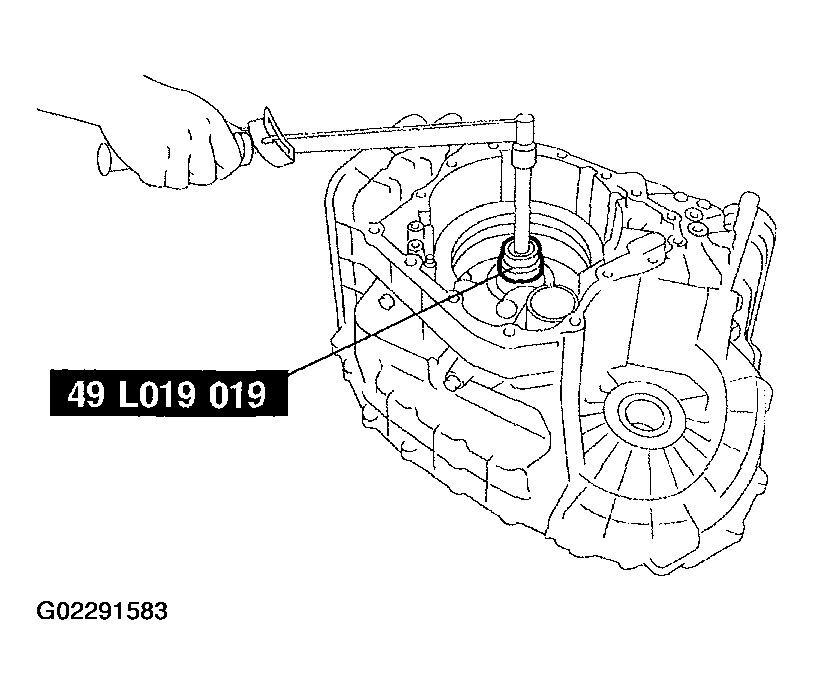

    Fig 1: Installing SST On Output Gear Component
    G02291583Courtesy of MAZDA MOTORS CORP.
  3. Verify that the preload scale reading is within the specification.
    • If not as specified, replace the output gear.

    Preload

    0.63-1.30 N.m {6.4-13.3 kgf.cm, 5.6-11.5 in.lbf}

  4. Remove the SST  and the output gear component.
